Smiths Detection — HI SCAN 5180SI

Mail and Small Parcel · Model brochure & technical specifications

Back to X-Compare
Compare HI SCAN 5180SI against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs LINEV Systems BV 5030 vs Astrophysics MS 53MD vs Gilardoni FEP ME 536
Open X-Compare

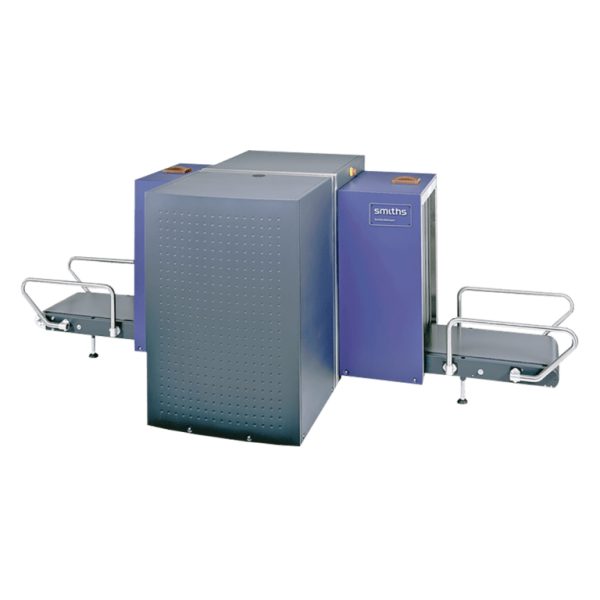

Smiths Detection HI SCAN 5180SI
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
517
Tunnel Height (mm)
800
Conveyor
Conveyor Height (mm)
232
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
3090 x 1452 x 1195
Weight (kg)
600
Electrical
Power
230 VAC or 120 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
fading-in of date/time, luggage counter, user id-number, luggage marking system (acoustic), display of operating mode, REVIEW-feature (to recall previously visible image areas), zoom overview, free programmable keys, USB 2.0 interface, stepless zoom
Features
Features (10)
  • fading-in of date/time
  • luggage counter
  • user id-number
  • luggage marking system (acoustic)
  • display of operating mode
  • REVIEW-feature (to recall previously visible image areas)
  • zoom overview
  • free programmable keys
  • USB 2.0 interface
  • stepless zoom
