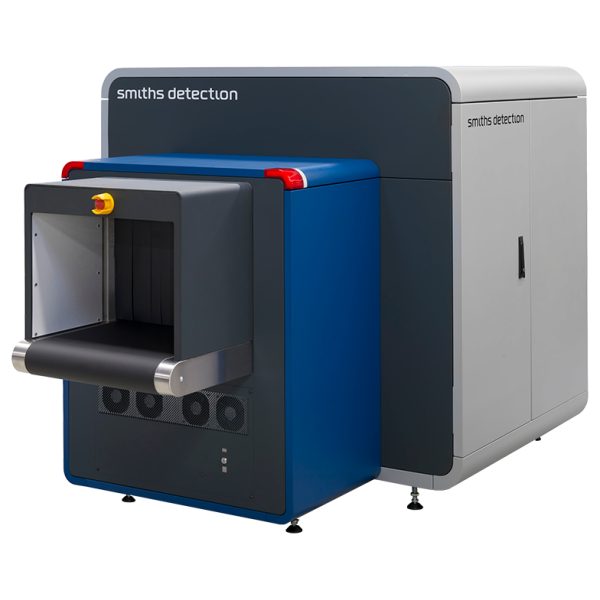

Smiths Detection HI SCAN 6040 CTIX MODEL S
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
1
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
3300 x 1470 x 1624
Weight (kg)
2099
Electrical
Power
CT single phase 230 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz, 16 A; single phase 120 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz, 30 A
Software
Software / OS
Linux
Options
Options
Optional iCMORE automated object recognition software for detecting prohibited items including guns and knives; Requires Heimann Management Server HMS or integration with Checkpoint.EvoPlus
Features
Features (15)
  • Automatic explosives detection and object recognition
  • Fast 0.2m/s belt speed
  • Low energy consumption
  • Minimal noise/zero vibration
  • Optimized weight & footprint
  • Highest certifications/approvals
  • ECAC approved for screening liquids
  • aerosols and gels up to 2 liters
  • Noise levels under 60dB(A) plus zero vibration
  • D X-ray images
  • User interface received 2020 Red Dot award for fast and intuitive 3D image evaluation
  • Latest data security features including OS hardening
  • host-based firewall
  • strong encryption
  • System integrity monitoring
