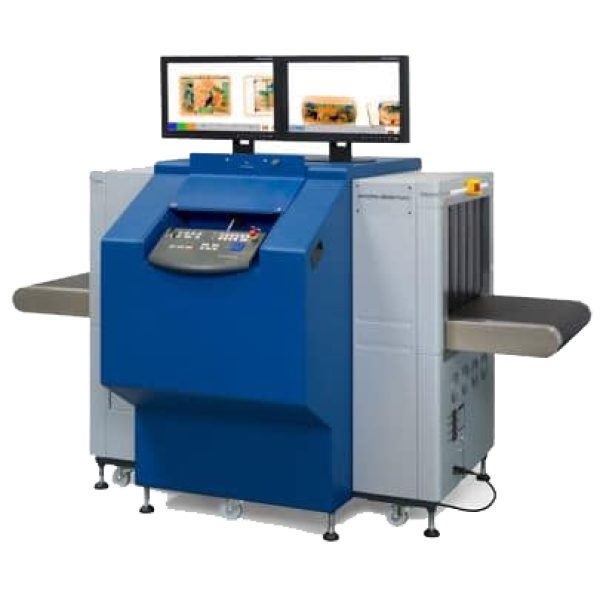

Smiths Detection HI SCAN 6040 DV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
800
Conveyor Speed (m/s)
0.258
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
2340 x 1314 x 1372
Weight (kg)
820
Electrical
Power
100, 120, 200, 230, 240 VAC +10% / -15% • 50 Hz - 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
HI-TIP+, SD Training System, Random ReCheck, iCMORE
Features
Features (24)
  • Dual-view X-ray with high-definition imaging
  • Smart display functions - accurate and fast decisions
  • Optional automatic weapon detection algorithms
  • Easy integration into tray handling systems
  • Highest levels of cyber security
  • Compact footprint
  • Optimised Background Contrast function
  • Compatible with Checkpoint.Evoplus screening and management platform
  • Straightforward integration into tray handling lanes
  • Functions display of date/time
  • software counters
  • luggage marking system
  • REVIEW-feature
  • programmable priority keys
  • standard network interface
  • Automatic return mode
  • USB 3.0 interface
  • Printer support
  • IMS (Image Store System up to 400.000 images)
  • Full Reverse Mode
  • Failsafe Mode
  • System diagnostic features Power-on Self-Test (POST)
  • Real-time Background Diagnosis (RBD)
  • Real-time System Feedback (RSF)
