Smiths Detection — HI SCAN 7555 DV

Checkpoint · Model brochure & technical specifications

Back to X-Compare
Compare HI SCAN 7555 DV against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Nuctech CX7555BI vs Nuctech CX7555D vs VITA Detection V70
Open X-Compare

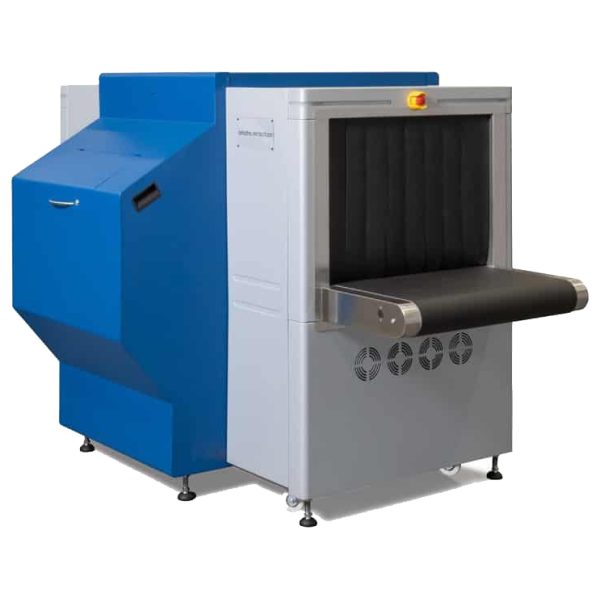

Smiths Detection HI SCAN 7555 DV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
755
Tunnel Height (mm)
555
Conveyor
Conveyor Height (mm)
800
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
2590 x 1450 x 1512
Weight (kg)
1050
Electrical
Power
100, 120, 200, 230, 240 VAC +10% / -20% • 50 Hz - 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
HI-TIP, SD Training System, Random Recheck, iCMORE Weapons
Features
Features (15)
  • Dual-view X-ray with high-definition imaging
  • Smart display functions
  • Highest level of protection against cyber threats
  • Compact footprint
  • Excellent steel penetration (35mm/1.38")
  • Superior image resolution
  • Organic Only Plus
  • Organic Stripping Plus
  • Organic Enhancement
  • Optimised Background Contrast
  • Hz 24” monitor
  • Zoom Out feature
  • Compatible with Checkpoint.Evoplus screening and management platform
  • Easy integration into tray handling lanes
  • ECAC EDS CB C1 approval
