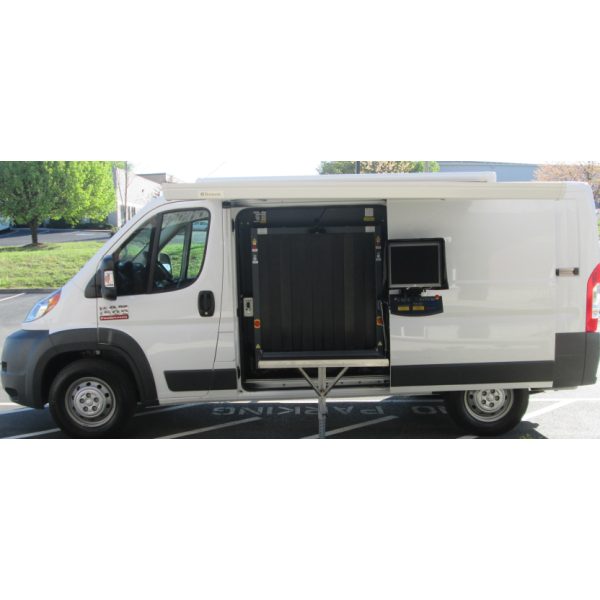

Smiths Detection — SCANVAN 100100 PRO

Mobile · Model brochure & technical specifications

Back to X-Compare
Compare SCANVAN 100100 PRO against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Astrophysics XIS Truck vs Astrophysics XIS Trailer vs Gilardoni FEP ME 975 SCANTR C
Open X-Compare
Smiths Detection SCANVAN 100100 PRO
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1010
Tunnel Height (mm)
1010
Conveyor
Conveyor Height (mm)
850
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
5400 x 2100 x 2300
Weight (kg)
N/A
Electrical
Power
220 VAC - 240 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
X-ACT, HI-TIP, Xport, High Density Alert (HDA)
Features
Features (10)
  • Built-in HI-SCAN inspection system
  • image review capability
  • image enhancement tools
  • full storage capability
  • foldable conveyor
  • penetration up to 35mm steel
  • wire detectability AWG 38
  • reverse mode conveyor
  • operator’s cabin with HCVA controls
  • powered by external supply or onboard generator
