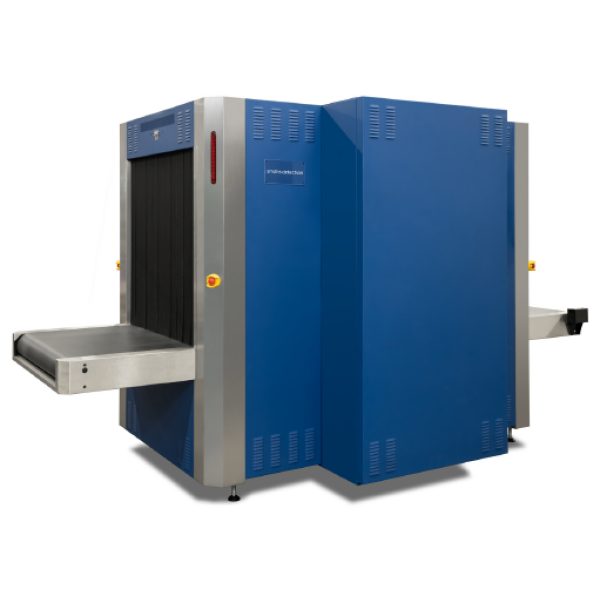

Smiths Detection SDX 100100 DV HC
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1009
Tunnel Height (mm)
1010
Conveyor
Conveyor Height (mm)
750
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
3591 x 1765 x 1992
Weight (kg)
1600
Electrical
Power
100, 120, 200, 230, 240 VAC +10% /-20% • 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
HI-TIP, SD Training System, Random Recheck, iCMORE Weapons, iCMORE Lithium Batteries, Passive In-/Output roller conveyors, motorized In-/Output conveyors, Tunnel extensions, Barcode reader, Attendance detector, iLOC monitor consoles
Features
Features (20)
  • Excellent detection capabilities exceeding international standards
  • dual-view detector system
  • AI based iCMORE option
  • ergonomic conveyor height
  • wire resolution AWG 41
  • steel penetration 37 mm
  • % duty cycle
  • no warm-up procedure required
  • color image
  • multiple image evaluation functions
  • flat screen LCD monitors
  • various additional features including date/time display
  • software counters
  • luggage marking system
  • network interface
  • USB 3.0
  • printer support
  • image store system
  • failsafe mode
  • system diagnostics
