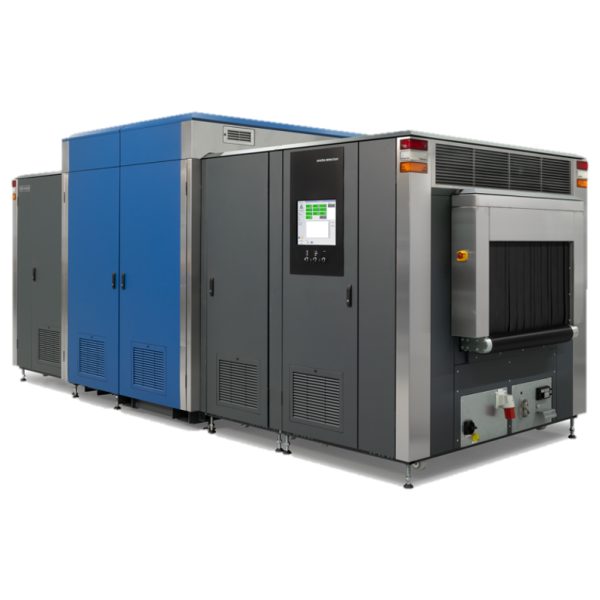

Smiths Detection SDX 10060 XDI
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1050
Tunnel Height (mm)
605
Conveyor
Conveyor Height (mm)
880
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
250
Generator
X-ray Voltage (kV)
180 + 160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
36
Steel Penetration (mm)
30
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
5945 x 2360 x 2550
Weight (kg)
8800
Electrical
Power
400 V AC ± 10%, 50 Hz ± 1%, approx. 18 kVA (operating)
Software
Software / OS
Linux
Options
Options
N/A
Features
Features (7)
  • Exceptional material specific detection
  • automated resolution for majority of alarms
  • overall FAR significantly reduced
  • reducing human factor and operational costs
  • future proof detection with extendable algorithms
  • accurate and adaptable identification of narcotics and contrabands
  • compliance with ECAC Standard 3.1/3.2 and TSA 7.2 plus future regulations
