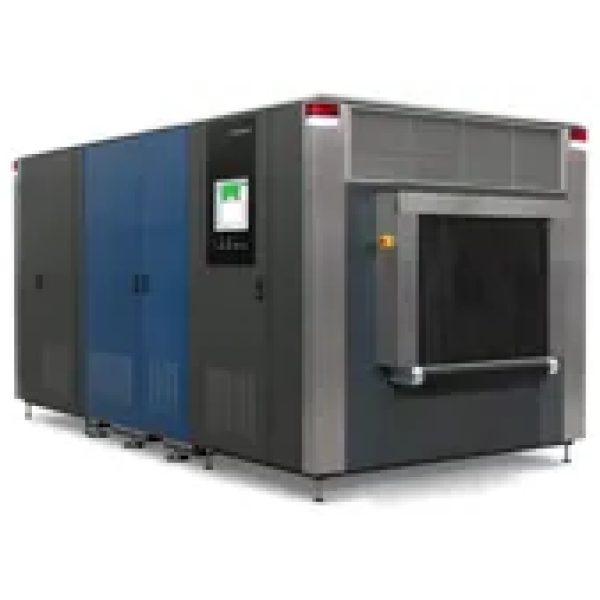

Smiths Detection — SDX 10080 SCT
Hold Baggage · Model brochure & technical specifications
Compare SDX 10080 SCT against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1070
Tunnel Height (mm)
810
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.5
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
Air cooled with no active cooling (air-conditioning) required
Mechanical
Footprint (L×W×H) (mm)
4568 x 2182 x 2167
Weight (kg)
6740
Electrical
Power
400 VAC + 10% / -15% 3-Phase, 50 Hz/60 Hz
Software
Software / OS
Linux
Options
Options
Dual-energy CT + optional highresolution dual-view line scanner • 3D and optional 2D high resolution colour images • Belt speed of 0.5m/sec • Large square tunnel to screen objects up to 100 x 80cm • Scalable and adaptable modular design • Reduced energy consumption • Simplified cooling • Optional iCMORE algorithms for expanded detection capabilities
Features
Features (8)
- Dual-energy CT + optional high-resolution dual-view line scanner
- D and optional 2D high resolution colour images
- Belt speed of 0.5m/sec
- Large square tunnel to screen objects up to 100 x 80cm
- Scalable and adaptable modular design
- Reduced energy consumption
- Simplified cooling
- Optional iCMORE algorithms for expanded detection capabilities
