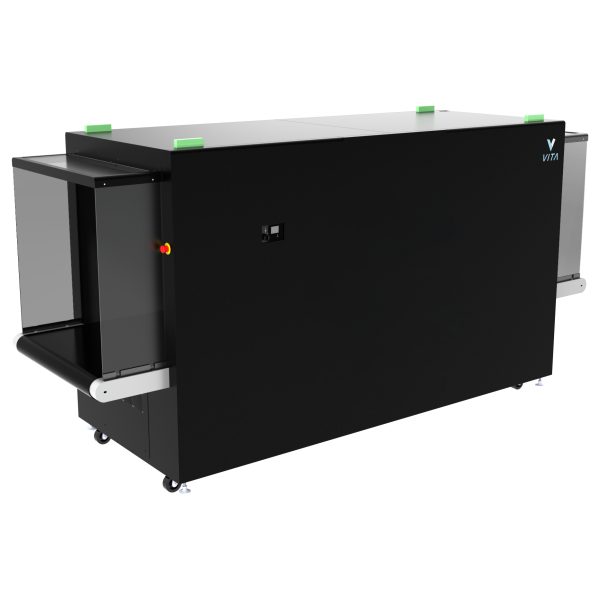

VITA Detection — V100
Hold Baggage · Model brochure & technical specifications
Compare V100 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1010
Tunnel Height (mm)
1010
Conveyor
Conveyor Height (mm)
800
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1.0
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
35
Generator
Cooling Type
Sealed oil bath and external fan cooling system
Mechanical
Footprint (L×W×H) (mm)
3600 x 1330 x 1970
Weight (kg)
1100
Electrical
Power
115/230 VAC ± 10%, 60/50 Hz, 10/5 A max
Software
Software / OS
Linux
Options
Options
Precious Metal Alert (PMA), Shrouds and additional curtain layer, Extended roller tables (various lengths), Pressure-sensitive floor mat, External UPS, Monitor/console display stand, Digital camera, Operator workstation desk, VITA Sentinel - Fleet Status Dashboard, Live Monitoring, Centralized User Management
Features
Features (10)
- D Isometric Perspective
- Dual-Energy Color Imaging
- Advanced Image Enhancement Algorithms
- Touch Screen Monitor
- Intuitive & User-Friendly Controls
- Multilingual Operation
- Automatic Scan Archiving
- One-Touch Archive Timeline Review
- VITA Sentinel - Network Ready
- Best-in-Class Image Quality
