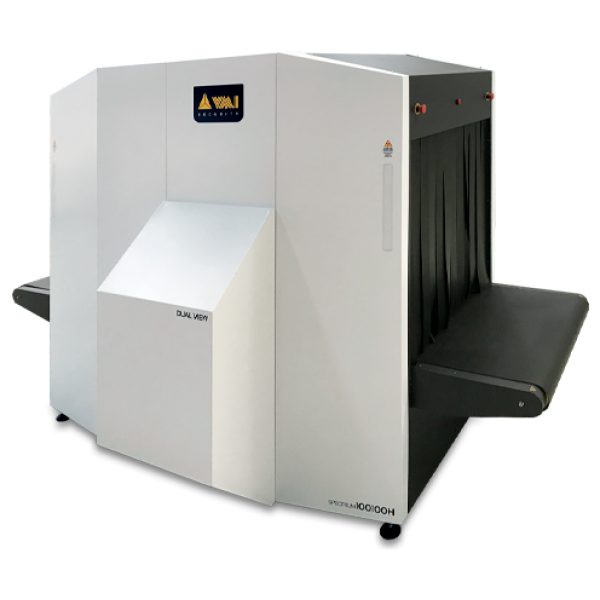

VMI Security — 100100HDV
Hold Baggage · Model brochure & technical specifications
Compare 100100HDV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1013
Tunnel Height (mm)
1003
Conveyor
Conveyor Height (mm)
711
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
180 x 170
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
38
Generator
Cooling Type
Insulating oil
Mechanical
Footprint (L×W×H) (mm)
3483 x 1724 x 1980
Weight (kg)
1514
Electrical
Power
110 - 127 VAC / 208 - 240 V AC (-15% to +10%); 50 Hz/60 Hz, +/-3 Hz, 1070 VA
Software
Software / OS
Linux
Options
Options
Customized painting; Training software; Local language; Remote workstation; ASTM standard test kit; Modular roller table; Lockable anti theft console with key; Remote management software for multiple devices; Camera; Tunnel protection extension; UPS; Ability to integrate with conveyor system; WiFi capability; Integration with Garrett’s walk-through metal detector portals; ONVIF compatibility
Features
Features (24)
- Automatic discrimination of organic
- inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black/white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG
- TIFF
- BMP and VMI image export
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs
- explosives and high density materials
- Storage capacity over 200
- images
