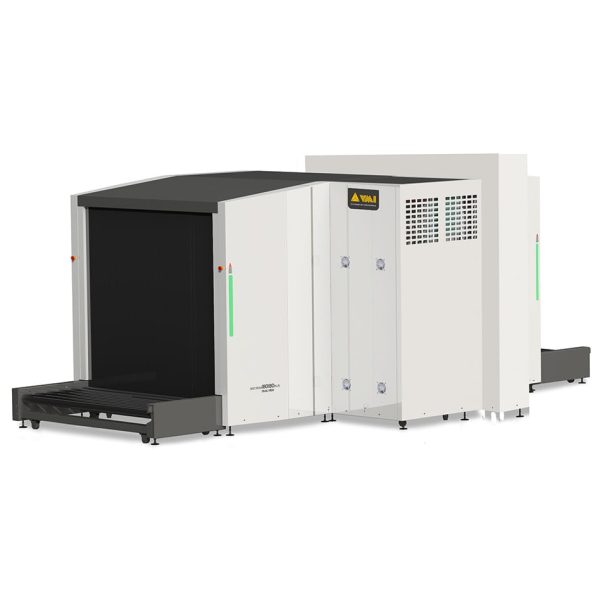

VMI Security — 180180DV 320KV
Cargo · Model brochure & technical specifications
Compare 180180DV 320KV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1838
Tunnel Height (mm)
1822
Conveyor
Conveyor Height (mm)
355
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
320
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
36
Steel Penetration (mm)
70
Generator
Cooling Type
Insulating oil with forced air cooling
Mechanical
Footprint (L×W×H) (mm)
10865 x 3197 x 2854
Weight (kg)
11880
Electrical
Power
220VAC (-15% a +10%); 50Hz/60Hz, +/-3Hz, 4100 VA
Software
Software / OS
Linux
Options
Options
Customized painting; Training software; Local language; Remote workstation; Modular roller table; Lockable anti theft console with key; Remote management software for multiple devices; Camera; UPS; Ability to integrate with conveyor system; WiFi capability; ONVIF compatibility
Features
Features (24)
- Automatic discrimination of organic
- inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black/white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG
- TIFF
- BMP and VMI image export
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs
- explosives and high density materials
- Storage capacity over 60
- images
