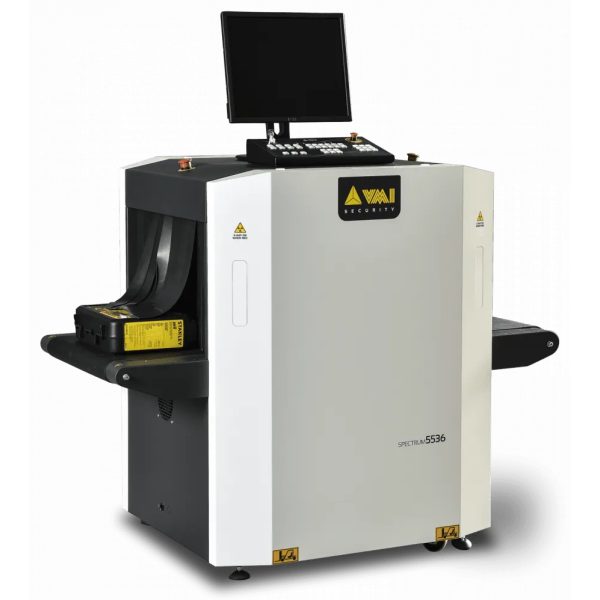

VMI Security — 5536
Mail and Small Parcel · Model brochure & technical specifications
Compare 5536 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
556
Tunnel Height (mm)
372
Conveyor
Conveyor Height (mm)
654
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
100
Generator
X-ray Voltage (kV)
110
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
16
Generator
Cooling Type
Insulating oil with forced air cooling
Mechanical
Footprint (L×W×H) (mm)
1450 x 820 x 1170
Weight (kg)
290
Electrical
Power
127Vac / 220Vac / 230Vac (-15% to +10%); 50Hz/60Hz, +/-3Hz, 600VA
Software
Software / OS
Linux
Options
Options
Customized painting, Training Software, Local language, Remote workstation, Standard ASTM or STP test kit, Modular roller table, Anti-theft operation console with key, Uninterruptible Power Supply, Remote workstation software (Spectrum Ativa), Tunnel extension, Touch screen monitor, Ability to integrate with conveyor system, WiFi capability, Integration with Garrett’s walk-through metal detector portals
Features
Features (24)
- Automatic color coding of materials with different atomic numbers
- Image auto save
- Baggage Counter
- Continuous scanning
- Zoom higher than 128x
- Colored or black/white image
- Threat image projection (TIP)
- High density alert
- Edge enhancement
- High penetration function
- Sharpness enhancement
- Image export to JPEG
- TIFF and BMP
- Export to a secure VMI encrypted viewing application
- Network connection
- Scanning in real time
- Bidirectional inspection
- Self diagnostic system
- Color Inversion
- Image manipulation in real time
- Automatic detection algorithm for drugs
- explosives and high density materials
- Storage capacity above 200
- images
