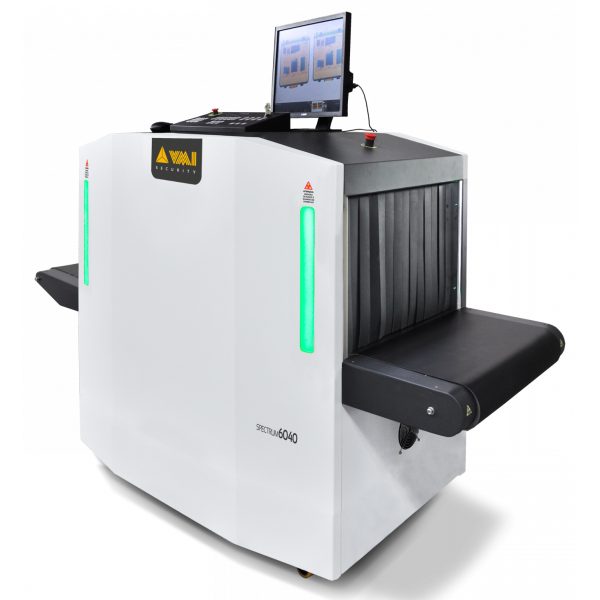

VMI Security — 6040
Mail and Small Parcel · Model brochure & technical specifications
Compare 6040 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
424
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
42
Generator
Cooling Type
Insulating oil with forced air cooling
Mechanical
Footprint (L×W×H) (mm)
1985 x 880 x 1247
Weight (kg)
495
Electrical
Power
127, 220, 230VAC (-15% a +10%); 50Hz/60Hz, +/-3Hz, 680VA
Software
Software / OS
Linux
Options
Options
Customized painting, Training Software, Local language, Remote workstation, Standard ASTM or STP test kit, Modular roller table, Anti-theft operation console with key, Uninterruptible Power Supply, Remote workstation software (Spectrum Ativa), Tunnel extension, Touch screen monitor, Ability to integrate with conveyor system, WiFi capability, Integration with Garrett’s walk-through metal detector portals
Features
Features (25)
- Automatic discrimination of organic
- inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black / white image
- Edge highlighting
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG
- TIFF and BMP image export
- It exports to a secure VMI encrypted viewing application
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs
- explosives and high density materials
- Storage capacity over 200
- images
- L-shaped detectors
