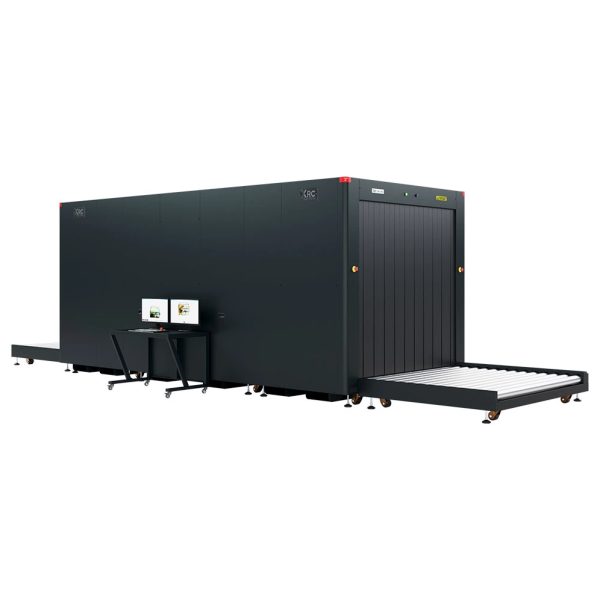

X-ray Center — XRC 180-180 200KV
Cargo · Model brochure & technical specifications
Compare XRC 180-180 200KV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1825
Tunnel Height (mm)
1810
Conveyor
Conveyor Height (mm)
290
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
1.2
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
52
Generator
Cooling Type
Oil and forced air cooling
Mechanical
Footprint (L×W×H) (mm)
8100 x 2775 x 2315
Weight (kg)
5800
Electrical
Power
110/220V AC ±10% 50/60 Hz, 10A/5A max.
Software
Software / OS
Linux
Options
Options
N/A
Features
Features (30)
- Programmable Function Keys
- Parcel Counter
- Date and Time Display
- Virtual Threat Image Projection (TIP)
- Organic/Inorganic Threat Alarm
- Operator Training Program (OTP)
- UPS (For Computer Supply)
- Multi Languages
- Self Diagnosis
- Generator Timer
- Automatic Stop Conveyor
- Perfect View (Detail Enhancement) (PV)
- Edge Enhancement (EE)
- Pseudo Color (PS)
- Organic Materials (OM)
- Inorganic Materials (IM)
- Black & White (B/W)
- Inverse Colors (IN)
- High Penetration (HP)
- Variable Edge Enhancement (+E –E)
- Variable Density (+D –D)
- Variable Gamma (+G –G)
- Variable Color Separation (+C –C)
- Zoom (64x)
- Sniper Zoom
- Recall Previous Images
- Manual/Automatic Archive
- Annotated Archive
- Multi Energy Viewer (4 –6 Color)
- Atomic Number Display (Z Value)
