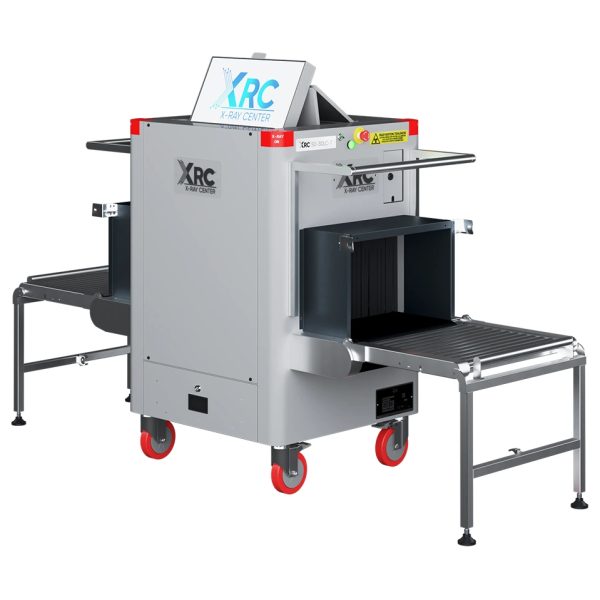

X-ray Center XRC 50-30LCT
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
532
Tunnel Height (mm)
332
Conveyor
Conveyor Height (mm)
580
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
80
X-ray Current (mA)
0.5
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
12
Generator
Cooling Type
Oil and forced air cooling
Mechanical
Footprint (L×W×H) (mm)
2380 x 770 x 1280
Weight (kg)
400
Electrical
Power
110/220V AC ±10% 50/60 Hz, 6A/3A
Software
Software / OS
Linux
Options
Options
External UPS (For system), Test Kit (STP/ASTM), Protective Cover, Search Table, Tray Return System (Motorized/Gravity), Inclined Conveyor, Ultrasonic Rat Repellent, Radiation Meter, Barcode Reader System, External Camera Archiving, Remote Viewing Station, Recheck Station, Network Supervisory System (NSS), Remote Access Connection, Smart Card Login
Features
Features (38)
  • Mobility and Compact Design
  • Advanced Imaging Technology
  • UserFriendly Interface
  • Software and Language Support
  • Programmable Function Keys
  • Parcel Counter
  • Date and Time Display
  • Virtual Threat Image Projection (TIP)
  • Organic/Inorganic Threat Alarm
  • Operator Training Program (OTP)
  • UPS (For Computer Supply)
  • Multi Languages
  • Self Diagnosis
  • Generator Timer
  • Automatic Stop Conveyor
  • Foldable Stainless Steel Rollers
  • Heavy Duty Caster Wheels
  • Bi-Directional Scanning
  • Emergency Stop Buttons
  • Perfect View (Detail Enhancement) (PV)
  • Edge Enhancement (EE)
  • Pseudo Color (PS)
  • Organic Materials (OM)
  • Inorganic Materials (IM)
  • Black & White (B/W)
  • Inverse Colors (IN)
  • High Penetration (HP)
  • Variable Edge Enhancement (+E –E)
  • Variable Density (+D –D)
  • Variable Gamma (+G –G)
  • Variable Color Separation (+C –C)
  • Zoom (64x)
  • Sniper Zoom
  • Recall Previous Images
  • Manual/Automatic Archive
  • Annotated Archive
  • Multi Energy Viewer (4 –6 Color)
  • Atomic Number Display (Z Value)
