X-ray Center — XRC 50-30P

Mail and Small Parcel · Model brochure & technical specifications

Back to X-Compare
Compare XRC 50-30P against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Gilardoni ARGO 536 vs VMI Security 5335 vs Smiths Detection HI SCAN 5030C
Open X-Compare

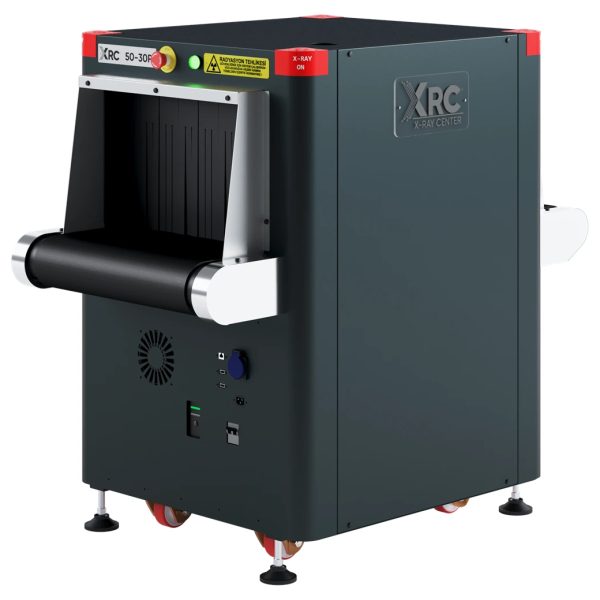

X-ray Center XRC 50-30P
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
530
Tunnel Height (mm)
330
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
147
X-ray Current (mA)
0 .7
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
39
Generator
Cooling Type
Oil and forced air cooling
Mechanical
Footprint (L×W×H) (mm)
1265 x 760 x 1150
Weight (kg)
380
Electrical
Power
110/220V AC ±10%50/60 Hz, 6A/3A
Software
Software / OS
Linux
Options
Options
N/A
Features
Features (34)
  • Perfect View (Detail Enhancement) (PV)
  • Edge Enhancement (EE)
  • Pseudo Color (PS)
  • Organic Materials (OM)
  • Inorganic Materials (IM)
  • Black & White (B/W)
  • Inverse Colors (IN)
  • High Penetration (HP)
  • Variable Edge Enhancement (+E –E)
  • Variable Density (+D –D)
  • Variable Gamma (+G –G)
  • Variable Color Separation (+C –C)
  • Zoom (64x)
  • Sniper Zoom
  • Recall Previous Images (100
  • or superior)
  • Manual/Automatic Archive (100
  • or superior)
  • Annotated Archive
  • Multi Energy Viewer (4 –6 Color)
  • Atomic Number Display (Z Value)
  • Programmable Function Keys
  • Parcel Counter
  • Date and Time Display
  • Virtual Threat Image Projection (TIP)
  • Organic/Inorganic Threat Alarm
  • Operator Training Program (OTP)
  • UPS (For Computer Supply)
  • Multi Languages
  • Self Diagnosis
  • Generator Timer
  • Bi-Directional Scanning
  • Automatic Stop Conveyor
  • Emergency stop buttons
