Scanner Comparison
XIS 5335S vs CX5030T

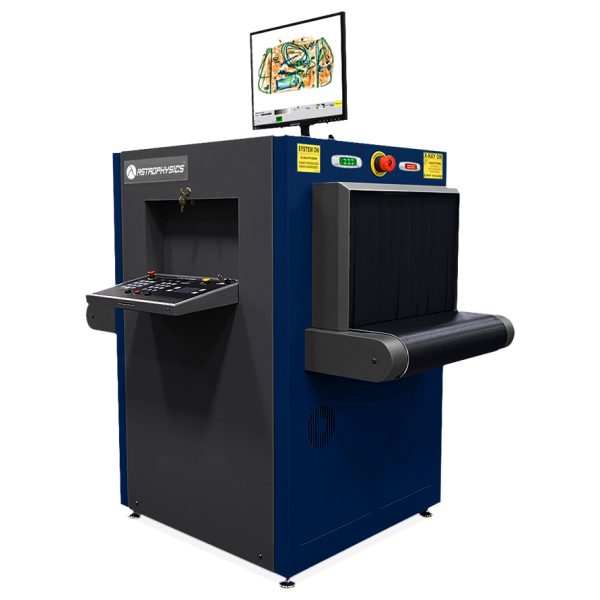

| Spec | Astrophysics XIS 5335S | Nuctech CX5030T |
|---|---|---|
| Tunnel | ||
| Tunnel Width (mm) | 533 | 534 |
| Tunnel Height (mm) | 358 | 328 |
| Conveyor | ||
| Conveyor Height (mm) | 729 | 160 |
| Conveyor Speed (m/s) | 0.23 | 0.2 |
| Load Capacity (kg) | 165 | 60 |
| Generator | ||
| X-ray Voltage (kV) | 150 | 100 |
| X-ray Current (mA) | 0.7 | N/A |
| Generator(s) | 1 | 1 |
| Cooling Type | Sealed Di-Electric Oil Bath with Forced Air | Sealed oil bath |
| Imaging | ||
| View(s) | Single | Single |
| Performance | ||
| Wire Resolution (mm) | 40 AWG Typical, 38 AWG Standard | 40 |
| Steel Penetration (mm) | 39 mm Typical, 37 mm Standard | 16 |
| Mechanical | ||
| Footprint (L×W×H) (mm) | 1331 x 764 x 1225 | 1317 x 770 x 790 |
| Weight (kg) | 363 | 190 |
| Electrical | ||
| Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max; 220VAC +/- 10% 50/60Hz, 10 Amp Max | 220VAC/110VAC (-15% ~ +10%); 50Hz/60Hz, ±3Hz |
| Software | ||
| Software / OS | Windows® OS | Windows |
| Options | ||
| Options | Custom Paint, Detachable Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Mobility Kit, Uninterruptible Power Supply (UPS), Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Built-in Roller Tables | High-density area alert, Explosives / drugs detection, Threat image projection (TIP), Network kit |
| Features | XIS 5335S | CX5030T |
|---|---|---|
| Features | Artificial Intelligence (AI) Color Imaging Enhanced Imaging™ & 6 Color Imaging Black & White Imaging High Penetration Function Hold to Preview Imaging Functions Inverse Color Organic/Inorganic Imaging Pseudo Color Reverse Monochrome Atomic Z-Number Measurement Geometric Image Distortion Correction Material Discrimination Real-Time Image Manipulation Auto Image Archiving Image Review Save Image (RGB) Baggage Counter Image Annotation JPEG Conversion Print Image Capable Multi-Tier Accessibility Network Ready Real-Time Self Diagnostics Quadrant Zoom Continuous Scanning Continuous Zoom Up to 64x Vertical Zoom Panning Barcode Scanning Density Alert Local Language Safe Passage® Computer Based Training Screener Assist Software Test Case Threat Image Projection (TIP) Software |
High image quality with wire resolution of 40AWG and steel penetration up to 16mm Compact structure and light weight of approximately 190kg X-ray leakage around the equipment is close to natural background level Automatic detection and alarm of explosives and drugs TIP (Threat Image Projection) for operator performance monitoring and training Support stepwise continuous and magnifier functions Images can be saved as BMP JPG PNG and TIFF Ergonomic keyboard and user interface design Modular design and built-in diagnostic facility |
