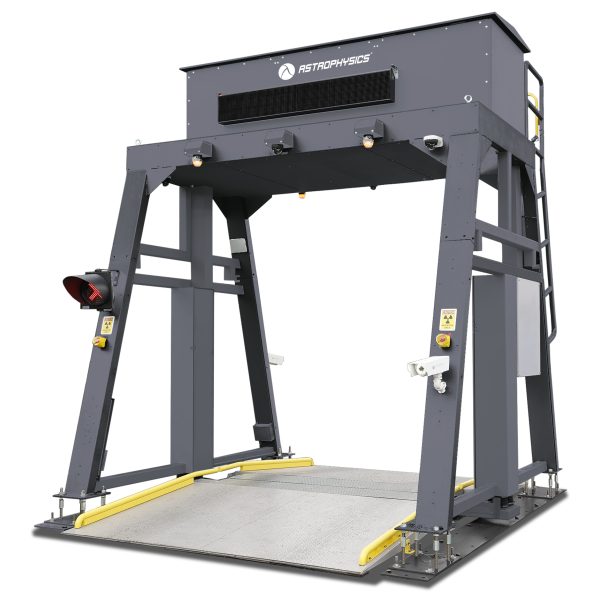

Astrophysics — HXC-LaneScan
Vehicle & Freight · Model brochure & technical specifications
Compare HXC-LaneScan against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
3050 x 3200
Recommended Max Vehicle/Object Size (mm)
2642 x 2718
Vehicle Throughput
Scanning Speed (km/hr)
8
Inspection Throughput (vehicles/hour)
450
Setup Time
N/A
Installation Time
N/A
Crew Requirement
N/A
Vehicle Imaging
Linac / Nominal Energy (MeV)
N/A
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
N/A
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
-20 to 50
Relative Humidity
Up to 95% Non-Condensing
Mechanical
Footprint (L×W×H) (mm)
3960 x 3660 x 4370
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
320
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Steel Penetration (mm)
65
Software
Software / OS
Windows® OS
Electrical
Power
200-240 VAC, Split Phase, 50/60Hz, 30 Amp Max
Options
Options
Local Language, Custom Paint, License Plate Reader, Radiation Meter, Ramp (No In-Ground Installation Necessary), LED Display, Remote Workstation, RFID, Under Vehicle Inspection System (UVIS), Vehicle Size Gauge
Features
Features (25)
- Fits in Standard Traffic Lanes
- kV Generator
- High Resolution Image
- Fully Automated with Minimal Manpower Requirements
- Above or In-Ground Installation
- Relocatable Option
- Multi-Tier Accessibility
- Network Ready
- Real-Time Self Diagnostics
- CCTV Camera System
- Radar Speed Detector
- Traffic Signal
- Black & White Imaging
- Color Imaging
- Material Discrimination
- Organic Imaging
- Picture Perfect
- Pseudo Color
- Reverse Monochrome
- Auto Image Archiving
- Continuous Zoom up to 64x
- Image Annotation
- Image Review
- Manual Bitmap Archive
- Print Image Capable
