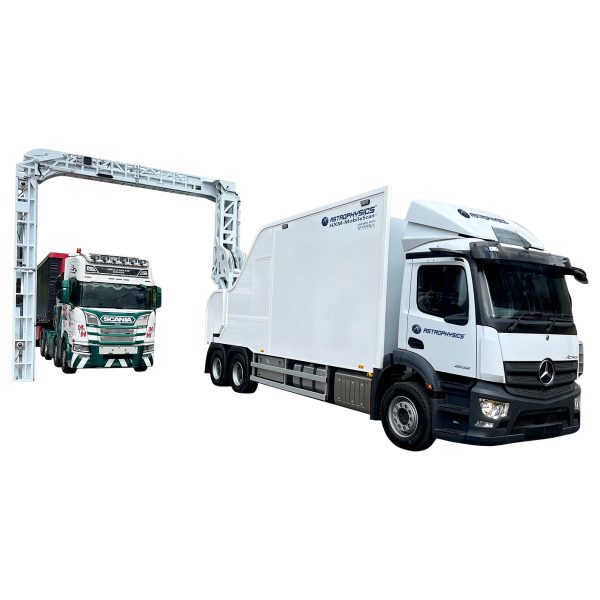

Astrophysics — HXM-MobileScan
Vehicle & Freight · Model brochure & technical specifications
Compare HXM-MobileScan against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
N/A
Recommended Max Vehicle/Object Size (mm)
N/A
Vehicle Throughput
Scanning Speed (km/hr)
N/A
Inspection Throughput (vehicles/hour)
N/A
Setup Time
N/A
Installation Time
N/A
Crew Requirement
N/A
Vehicle Imaging
Linac / Nominal Energy (MeV)
N/A
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
N/A
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
N/A
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
10400 x 8000 x 6000
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
4000/6000
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
Single
Performance
Steel Penetration (mm)
330 mm Typical, 300 Guaranteed
Software
Software / OS
Windows® OS
Electrical
Power
3 Phase 400V +/- 5% 48KvA 50Hz (Internal), 3 Phase 400V +/- 5% 60A 50Hz (External Fuel Generator)
Options
Options
Enhanced Material Discrimination, Local Language, Higher Archiving Capacity, Additional Image Analyst Workstation, Container Plate Reader, Custom Paint, Environmental Kit, Inspection Office, Operator Training, Wireless Infrared (IR) Perimeter Fence, Radiation Meter, Remote Inspection Workstation, Truck Plate Reader, Portal Operation Mode
Features
Features (21)
- User-Defined Interchange for Integrated Networking
- Enhanced Material Discrimination
- Real-Time Image Manipulation
- Automated Deployment System
- Image Annotation
- Material Print Image Capable
- Multi-Tier Accessibility
- Network Ready
- Real-Time Self Diagnostics
- CCTV Camera System
- Inspection Workstation
- Operator Workstation
- Black/White Imaging
- Picture Perfect
- Pseudo Color
- Reverse Monochrome
- Edge Enhancement
- Continuous Zoom Up to 64x
- Auto Image Archiving
- Image Review Management System
- Manual Bitmap Archive
