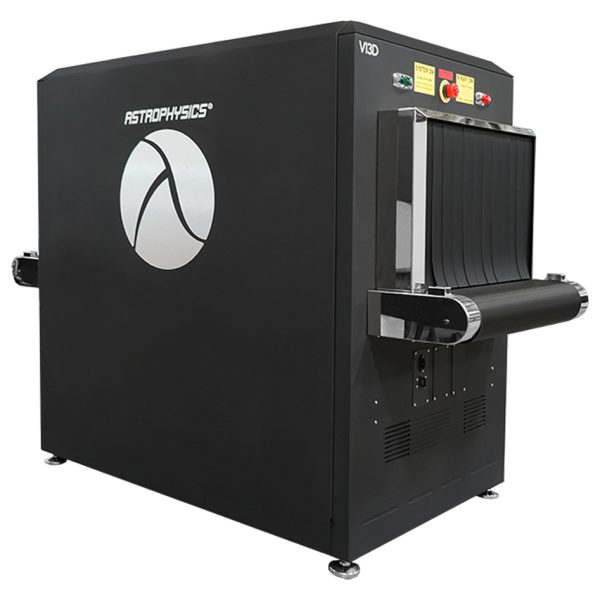

Astrophysics VI3D
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
600
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
730
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
170
X-ray Current (mA)
1.2
Generator(s)
1
Imaging
View(s)
Three Views
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
1872 x 833 x 1402
Weight (kg)
796
Electrical
Power
110 VAC +/- 10% 50/60Hz, 15 Amp Max; 220 VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Barcode Scanning, Local Language, Test Case, Custom Paint, Environmental Kit, Radiation Meter, Remote Workstation Configuration, Uninterruptible Power Supply (UPS), Conveyor Capacity Load Increase
Features
Features (21)
  • D MotionView™ Software
  • Touchscreen Monitor
  • Adjustable Mobile Stand
  • Atomic Z-Number Measurement
  • Material Discrimination
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Black/White Imaging
  • Color Imaging
  • Enhanced Imaging™
  • Geometric Image Distortion Correction
  • High Penetration Function
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Real-Time Image Manipulation
  • Reverse Monochrome
