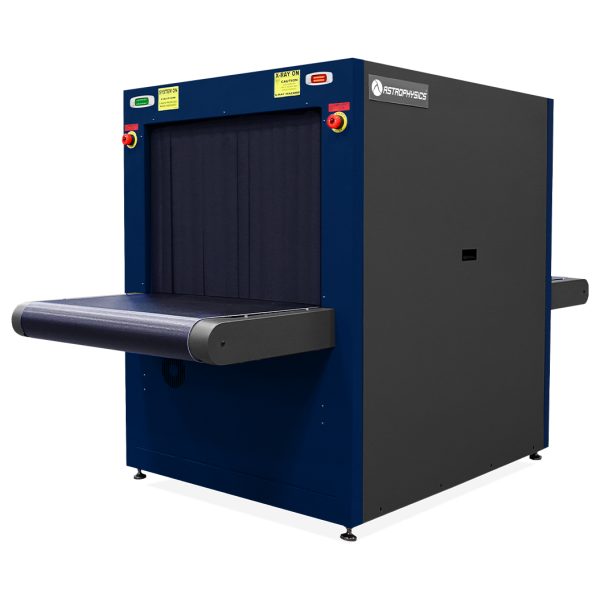

Astrophysics XIS 7858
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
77.7
Tunnel Height (mm)
579
Conveyor
Conveyor Height (mm)
69.1
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
165
X-ray Current (mA)
1.2
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
2293 x 1006 x 1400
Weight (kg)
640
Electrical
Power
110 VAC +/- 10% 50/60Hz, 15 Amp Max; 220 VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Custom Paint, Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Long Conveyor, Roller Bed, Radiation Meter, Remote Workstation Configuration, External USB Ports, Conveyor Capacity Load Increase, Variable Conveyor Speed, Artificial Intelligence (AI)
Features
Features (37)
  • Artificial Intelligence (AI)
  • Enhanced Imaging™
  • Real-Time Diagnostics
  • Minimal System Profile
  • & 6 Color Imaging
  • Black & White Imaging
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Geometric Image Distortion Correction
  • Material Discrimination
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Image Annotation
  • JPEG Conversion
  • Print Image Capable
  • Multi-Tier Accessibility
  • Network Ready
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Density Alert
  • Local Language
  • Safe Passage® Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
  • Dual 24” Flat Panel Monitors
