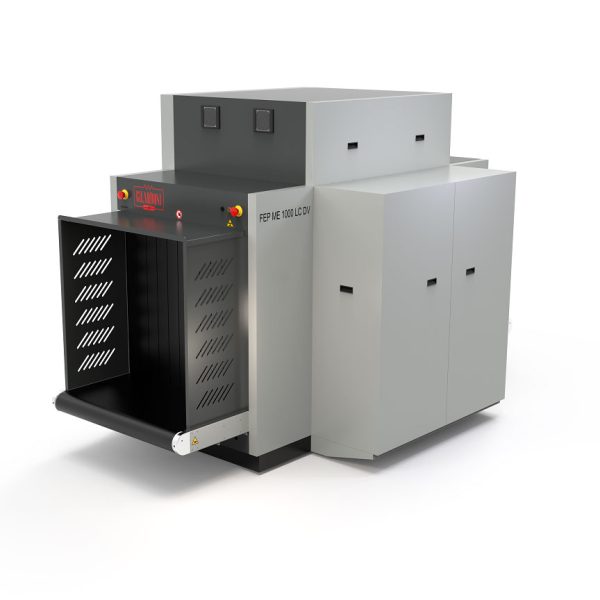

Gilardoni — FEP ME 1000 DV
Hold Baggage · Model brochure & technical specifications
Compare FEP ME 1000 DV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1006
Tunnel Height (mm)
1010
Conveyor
Conveyor Height (mm)
376
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1.8
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
3374 x 1736 x 2026
Weight (kg)
1700
Electrical
Power
230Vac ± 10% 50/60Hz, Power absorption: 2kVA
Software
Software / OS
Linux
Options
Options
Opzioni / Options • ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (2)
- Beam orientation: diagonal downwards and sideways
- Duty cycle: 100%
