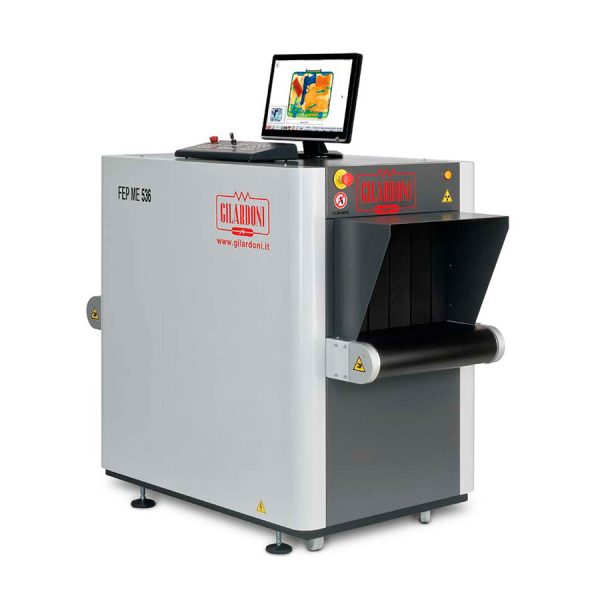

Gilardoni FEP ME 536
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
506
Tunnel Height (mm)
360
Conveyor
Conveyor Height (mm)
690
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.5
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
32
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
1524 x 770 x 1212
Weight (kg)
400
Electrical
Power
230Vac ± 10% 50/60Hz, Power absorption: 1kVA
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (5)
  • monitor LCD widescreen
  • Duty cycle: 100%
  • Beam orientation: diagonal upwards
  • Leakage dose at 10cm: < 1.0µSv/h (0.1mR/h)
  • Film safety guaranteed up to ISO 1600/33 DIN
