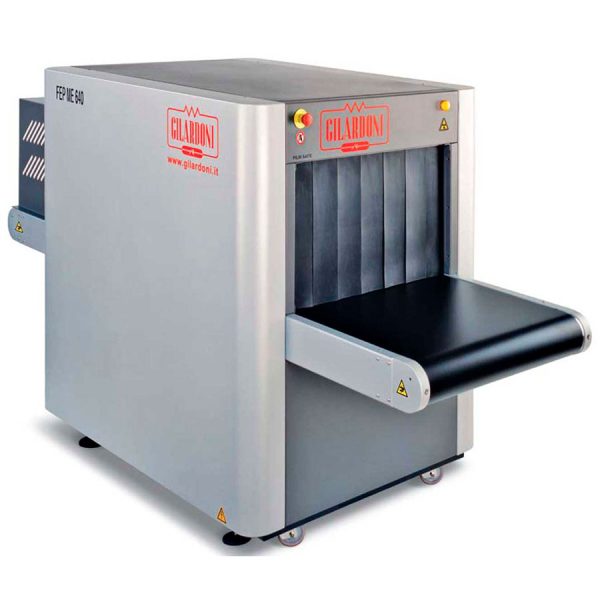

Gilardoni FEP ME 640
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
606
Tunnel Height (mm)
405
Conveyor
Conveyor Height (mm)
680
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.5
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
34
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2280 x 905 x 1255
Weight (kg)
540
Electrical
Power
230Vac ± 10% 50/60Hz
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (1)
  • monitor LCD widescreen
