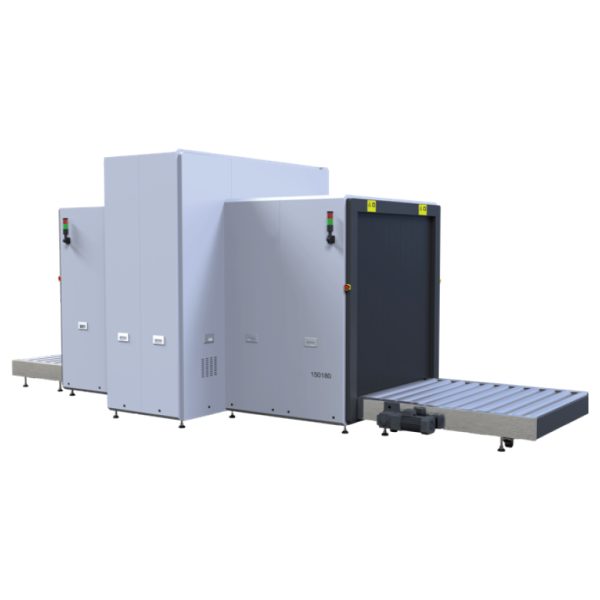

Hissco International HS1518
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1516
Tunnel Height (mm)
1810
Conveyor
Conveyor Height (mm)
350
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
1.0
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
48
Generator
Cooling Type
Sealed oil cooling
Mechanical
Footprint (L×W×H) (mm)
5258 x 2440 x 2795
Weight (kg)
2500
Electrical
Power
220 VAC / AC 380 V (± to +10%) 50 Hz / 60 Hz ± 3 Hz 1.5 kVA (one mode) or 3 KVA (motorized rollers)
Software
Software / OS
N/A
Options
Options
• Entry / exit guards • Roller conveyors built to any length • UPS (Uninterrupted Power Supply) • VMS (Video Monitoring System)
Features
Features (7)
  • Multi-energy high definition detectors
  • Ultra thin object scanning using micro photo sensors
  • Modular design with self-diagnosis capability
  • Organic / inorganic stripping
  • Automatic threat and density alert
  • Network ready
  • Image archiving
