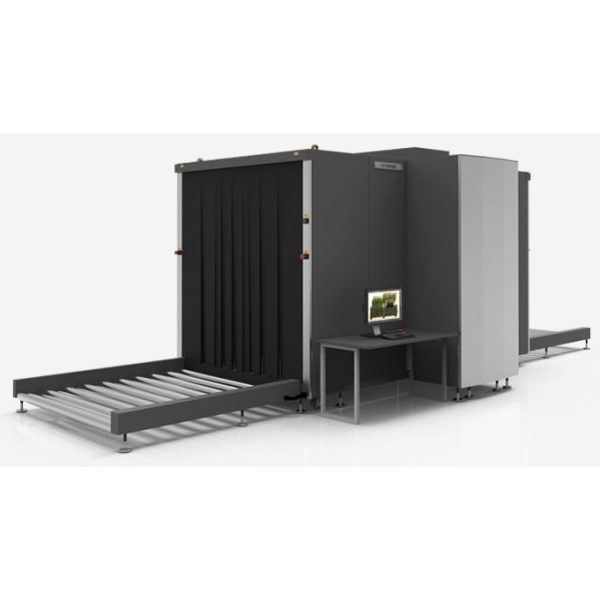

LINEV Systems BV 160180
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1750
Tunnel Height (mm)
1850
Conveyor
Conveyor Height (mm)
320
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
1.0
Wire Resolution (mm)
36
Steel Penetration (mm)
46
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
6800 x 2750 x 2400
Weight (kg)
3000
Electrical
Power
230 VAC ± 10%/120 VAC ± 5%, 50/60 Hz, Max 3,0 kVA
Software
Software / OS
Linux
Options
Options
Artificial Intelligence software system for automated detection of firearms, knives and ammunition, Touchscreen operation functionality, Ability to connect to a local network Remote operator position (up to 25 m), Monitor top position, Rigid type packaging
Features
Features (7)
  • High-resolution
  • single view X-ray baggage inspection system
  • automatic detection of prohibited objects and threats
  • unique colour palettes and touch control
  • fault-tolerant configuration of acquisition/analysis workstation
  • quick start-up and shutdown
  • real-time self-diagnostics
