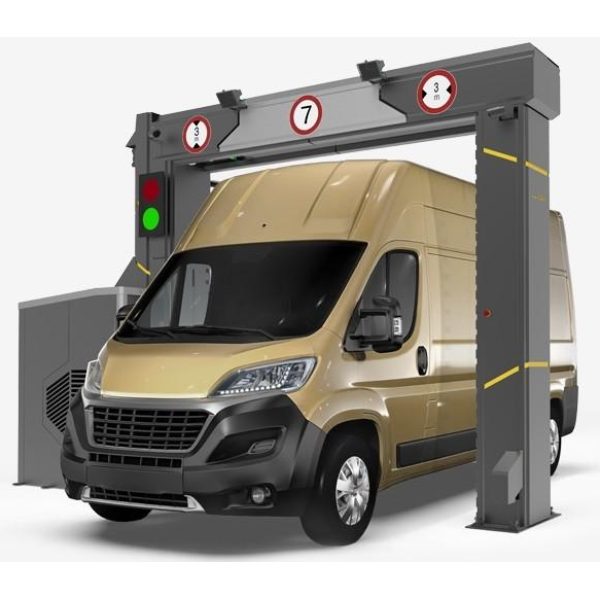

LINEV Systems — DTP 320LV
Vehicle & Freight · Model brochure & technical specifications
Compare DTP 320LV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
9.8 x 9.8
Recommended Max Vehicle/Object Size (mm)
16.4 x 8 x 2 x 9.19
Vehicle Throughput
Scanning Speed (km/hr)
3.1 x 9.3
Inspection Throughput (vehicles/hour)
120
Setup Time
N/A
Installation Time
N/A
Crew Requirement
N/A
Vehicle Imaging
Linac / Nominal Energy (MeV)
N/A
Spatial Resolution
20
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
+14 x +104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
N/A
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
320
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Steel Penetration (mm)
2.76
Software
Software / OS
Linux
Electrical
Power
N/A
Options
Options
-22 x +122
Features
Features (8)
- Innovative drive-thru scanning technology
- Dual energy technology with colour-coding
- Lateral projection
- High quality X-ray imaging
- Small footprint
- Dual-energy technology with automatic colour coding and material discrimination
- Drive-Through technology
- Low radiation dose allowing drivers and passengers to stay in cabins during inspection
