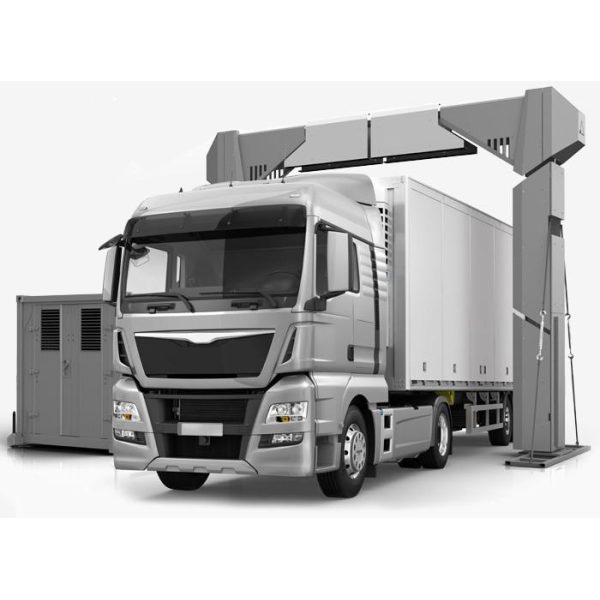

LINEV Systems — DTP 7500LV
Vehicle & Freight · Model brochure & technical specifications
Compare DTP 7500LV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
20 x 3 x 4 x 7
Recommended Max Vehicle/Object Size (mm)
3 x 5 x 4 x 8
Vehicle Throughput
Scanning Speed (km/hr)
5 x 10
Inspection Throughput (vehicles/hour)
120
Setup Time
N/A
Installation Time
N/A
Crew Requirement
N/A
Vehicle Imaging
Linac / Nominal Energy (MeV)
N/A
Spatial Resolution
2
Radiation Safety
Dose to Driver (microSv)
0.05
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
20 x 45 x 30 x 55
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
N/A
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
7.5MeV
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
1
Performance
Steel Penetration (mm)
320
Software
Software / OS
Linux
Electrical
Power
N/A
Options
Options
Automatic number plate recognition system (ANPR); Container code recognition system for freight container numbers; Under vehicle inspection system (UVIS); Integrated radiation portal monitor (IRPM); Vehicle weighting system; ID cards and passports reader
Features
Features (6)
- Innovative drive-thru scanning technology
- Dual energy technology with colour-coding
- Lateral projection
- High throughput 110 vehicles per hour
- Dual-energy technology with automatic colour coding and material discrimination
- Special algorithm of scanning - driver cabin not scanned or scanned with lower energy allowing safe stay of driver and passengers during inspection
