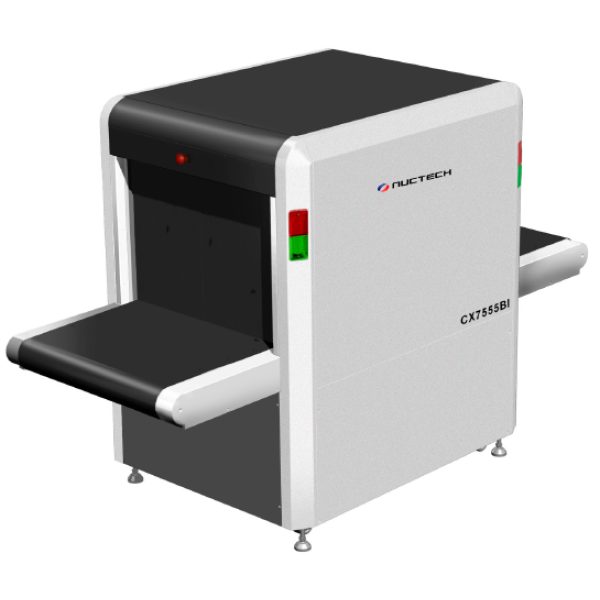

Nuctech — CX7555BI
Checkpoint · Model brochure & technical specifications
Compare CX7555BI against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
755
Tunnel Height (mm)
555
Conveyor
Conveyor Height (mm)
750
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
38
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2340 x 1000 x 1507
Weight (kg)
650
Electrical
Power
100VAC ~ 240VAC (-15% ~ +10%), 50Hz/60Hz ±3Hz, 1.0kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (13)
- State-of-the-art technology for superior image quality with wire resolution of 40 AWG and steel penetration up to 38mm
- X-ray leakage around the equipment is close to the natural background level
- which meets all published international health and safety standards
- Automatic detection and alarm of explosives and drugs
- TIP (Threat Image Projection) provides a very practical solution for operator performance monitoring and training
- Support stepwise
- continuous and local zoom functions to enlarge the scanning images in flexible and quick ways
- Images can be saved as general image format
- e.g. BMP
- JPG and PNG
- and be transferred to USB storage devices
- Ergonomic keyboard and user interface design ensure the efficiency and professional of the X-ray screening operation
- Modular design and construction combined with full built-in diagnostic facility guarantee the efficiency of equipment maintenance
