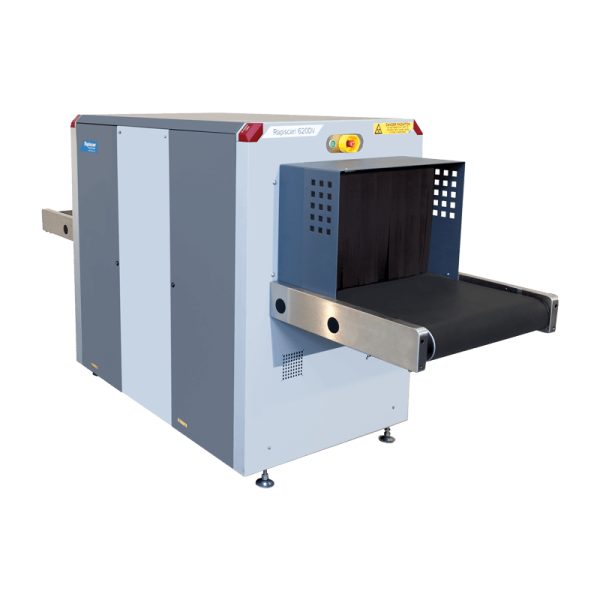

Rapiscan 620DV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
640
Tunnel Height (mm)
430
Conveyor
Conveyor Height (mm)
826
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1.0
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
40
Generator
Cooling Type
Sealed oil bath with forced air
Mechanical
Footprint (L×W×H) (mm)
2880 x 1430 x 1418
Weight (kg)
1000
Electrical
Power
115/230 VAC ±10%, 60/50Hz
Software
Software / OS
Windows OS
Options
Options
Detection of Liquids, Aerosols and Gels explosives (aLEXis™), Explosives Detection Alert (Target™), Narcotics Detection Alert (NARCScan™), Density Threshold Alert (DTA), Threat Image Projection (TIP), Remote Image Archive Review (NETView™), Network X-ray management automation and Link system (NEXLink™), Multi-System Network Display Station (NDS), Automatic Image Archiving, Enhanced Image Archiving, Operator Training Program (OTP), Manual Scan, Operator Pedestal, Foot Mat, Optical Operator Presence Sensor, SmartCard Login, Power Conditioner, Conveyor Accessories, Remote Workstation, Universal Printer Support
Features
Features (25)
  • Multi Energy Imaging (4 Color)
  • View Previous/Next Bag
  • Image Archive
  • Configurable Image Processing Keys
  • Baggage Counter
  • Date/Time Display
  • Search Indicator
  • UPS (Uninterrupted Power Supply)
  • Flat Panel Monitor
  • Multi Language Support
  • Crystal Clear™
  • Black and White
  • Organic/Inorganic Stripping
  • Inverse Video
  • High Penetration
  • Pseudo Color
  • Low Penetration
  • Variable Edge Enhancement
  • Variable Color Stripping
  • Variable Gamma
  • Variable Density
  • Dynamic Continuous Zoom & Panning
  • Fixed Zoom (64x)
  • Target™ Explosives Detection Alert
  • NARCScan™ Narcotics Detection Alert
