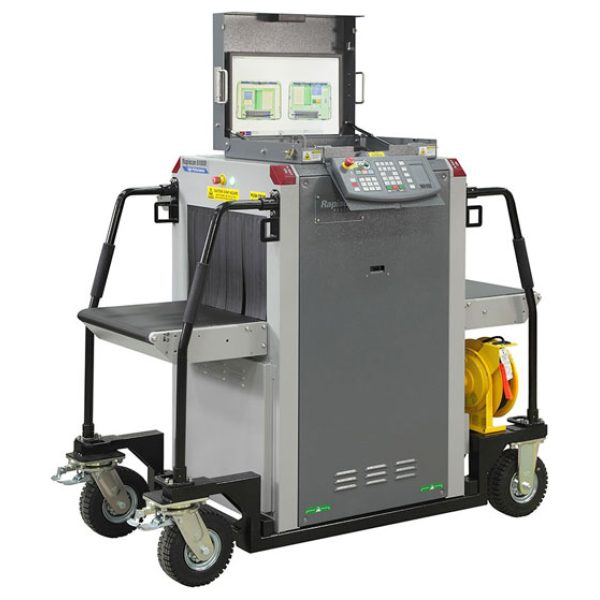

Rapiscan — 620XR HP
Mail and Small Parcel · Model brochure & technical specifications
Compare 620XR HP against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
859
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
44
Steel Penetration (mm)
44
Generator
Cooling Type
Sealed oil bath with forced air
Mechanical
Footprint (L×W×H) (mm)
2082 x 840 x 1589
Weight (kg)
N/A
Electrical
Power
115/230 VAC ±10%, 60/50Hz
Software
Software / OS
Windows OS
Options
Options
- Multi Energy Imaging (4 Color) - View Previous/Next Bag - Image Archive - Configurable Image Processing Keys - Baggage Counter - Date / Time Display - Search Indicator - UPS (Uninterrupted Power Supply) - Flat Panel Monitor - Multi Language Support
Features
Features (30)
- Multi Energy Imaging (4 Color)
- View Previous/Next Bag
- Image Archive
- Configurable Image Processing Keys
- Baggage Counter
- Date/Time Display
- Search Indicator
- UPS (Uninterrupted Power Supply)
- Flat Panel Monitor
- Multi Language Support
- Crystal Clear™
- SINERGY™
- Black and White
- Organic/Inorganic Stripping
- Inverse Video
- High Penetration
- Low Penetration
- Pseudo Color
- Variable Edge Enhancement
- Variable Color Stripping
- Variable Gamma
- Variable Density
- Dynamic Continuous Zoom & Panning
- Fixed Zoom (64x)
- Target™ and NARCScan™ explosives and narcotics detection
- SINERGY™ Dual-Mode X-ray imaging Technique (DMxT)
- Lockable pullout operator control panel and monitor console
- Large pneumatic wheels for easy transport
- Tie-down anchor points
- Easy to access cable reel
