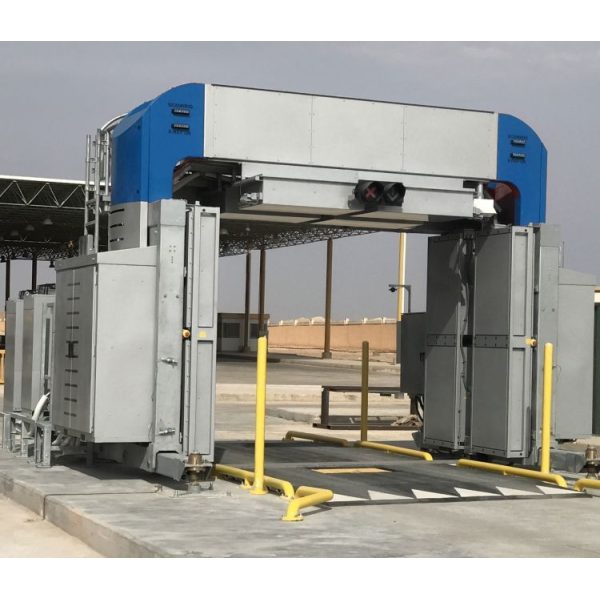

Rapiscan — Z PORTAL
Vehicle & Freight · Model brochure & technical specifications
Compare Z PORTAL against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
4.2 x 13.8 x 4.7 x 15.4 x 3.4 x 11.1 x 2.8 x 9.2
Recommended Max Vehicle/Object Size (mm)
3.5 x 11.5 x 4.6 x 15.1 x 2.7 x 8.8 x 2.7 x 8.8
Vehicle Throughput
Scanning Speed (km/hr)
4 x 20 x 2.5 x 12.4
Inspection Throughput (vehicles/hour)
400 x 250
Setup Time
N/A
Installation Time
N/A
Crew Requirement
One X-ray system operator inspector standard; additional traffic coordinator is optional
Vehicle Imaging
Linac / Nominal Energy (MeV)
N/A
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
0.04 x 4.0 x 8 x 5
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
-30 x 55 x -22 x 131
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
6.6 x 21.7 x 6.0 x 19.7 x 8.2 x 26.8 x 5.9 x 19.4 x 4.1 x 13.5 x 6.9 x 22.7
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
225
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
Six views in total (two images from each side and two images from the top)
Performance
Steel Penetration (mm)
N/A
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 90 A, 50 kVA; 60 Hz: 480 V, 75 A, 50 kVA
Options
Options
-40
Features
Features (9)
- Multi-view
- multi-technology system for comprehensive detection
- High-throughput
- drive-through screening
- Small footprint and construction-less design
- Z Backscatter
- Forwardscatter
- and dual-energy transmission technology
- Operator Alert Tools including Reference Vehicle Compare and Fusion Imaging™ Technology
