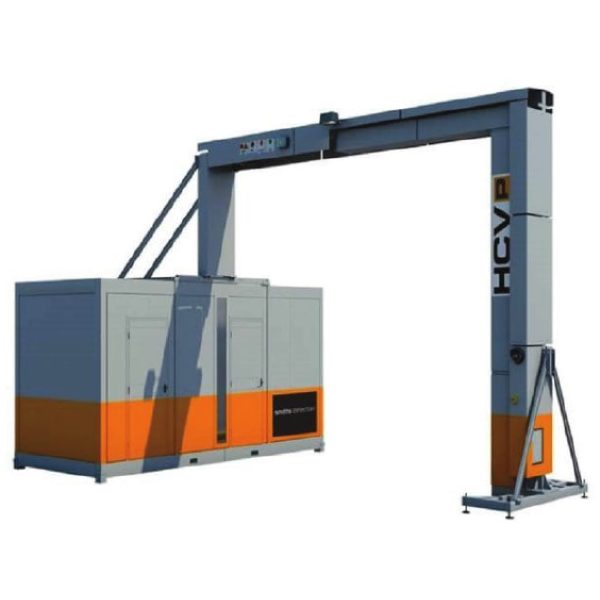

Smiths Detection — HCVP
Vehicle & Freight · Model brochure & technical specifications
Compare HCVP against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
5400 x 1100
Recommended Max Vehicle/Object Size (mm)
3.5 x 4.5
Vehicle Throughput
Scanning Speed (km/hr)
5
Inspection Throughput (vehicles/hour)
100
Setup Time
N/A
Installation Time
N/A
Crew Requirement
3
Vehicle Imaging
Linac / Nominal Energy (MeV)
4 - 6
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
150
Dose to Crew (microSv)
150
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
-20°C to +43°C
Relative Humidity
Up to 100%
Mechanical
Footprint (L×W×H) (mm)
N/A
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Steel Penetration (mm)
300
Software
Software / OS
Windows
Electrical
Power
N/A
Options
Options
N/A
Features
Features (0)
N/A
