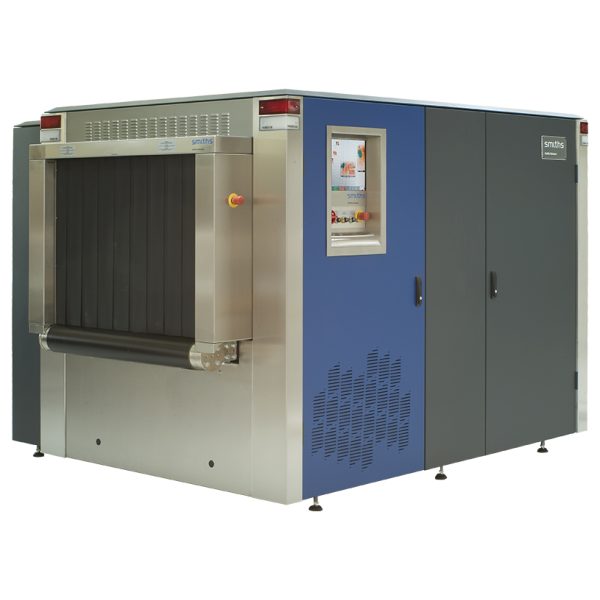

Smiths Detection — HI SCAN 10080 EDX 2IS
Hold Baggage · Model brochure & technical specifications
Compare HI SCAN 10080 EDX 2IS against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1070
Tunnel Height (mm)
810
Conveyor
Conveyor Height (mm)
800
Conveyor Speed (m/s)
0.5
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
5
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2900 x 2140 x 1900
Weight (kg)
3 080
Electrical
Power
400 VAC + 10% / -15%, 16 A (three-phase), 50/60 Hz ± 3 Hz, approx. 6 kVA
Software
Software / OS
Linux
Options
Options
Conveyor control Interfaces to control external conveyor system
Features
Features (9)
- Automatic detection of explosives
- Analysis of Zeff for efficient detection at low false alarm rates
- High belt speed up to 1
- items/h
- EU standard 2-compliant (acc. to regulation 1448/2006)
- Evaluation in real time
- Specially designed for multi-level screening of oversized objects up to 3.8 m length
- Two high-resolution X-ray images (dual view) for operator recheck
- Fully integratable in automatic conveyor devices and networks
