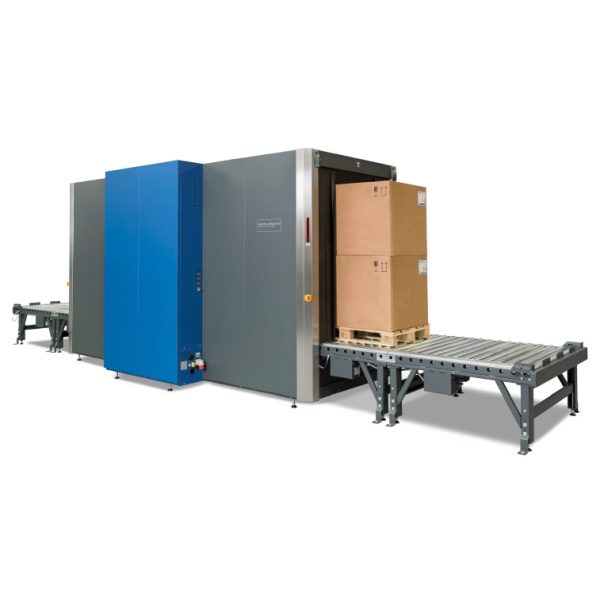

Smiths Detection — HI SCAN 145180 2IS PRO
Cargo · Model brochure & technical specifications
Compare HI SCAN 145180 2IS PRO against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1466
Tunnel Height (mm)
1817
Conveyor
Conveyor Height (mm)
680
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
5000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
58
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
6294 x 2179 x 2736
Weight (kg)
4425
Electrical
Power
400 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
HI-TIP, Barcode reader, Integration options
Features
Features (28)
- Dual view concept
- Excellent image presentation
- Rugged roller conveyor
- Advanced HiTraX 3 electronics
- Typical penetration: 58 mm of steel
- % duty cycle
- no warm-up procedure required
- ? Flat Panel LCD Monitor
- VARI-MAT
- O2
- OS
- HIGH
- SEN
- HDA
- HI-SPOT
- BW
- IMS
- electronic zoom up to 256-times
- fading-in of date/time
- object counter
- user id-number
- luggage marking system (acoustic)
- display of operating mode
- REVIEW-feature
- zoom overview
- free programmable keys
- USB 3.0 interface
- stepless zoom
