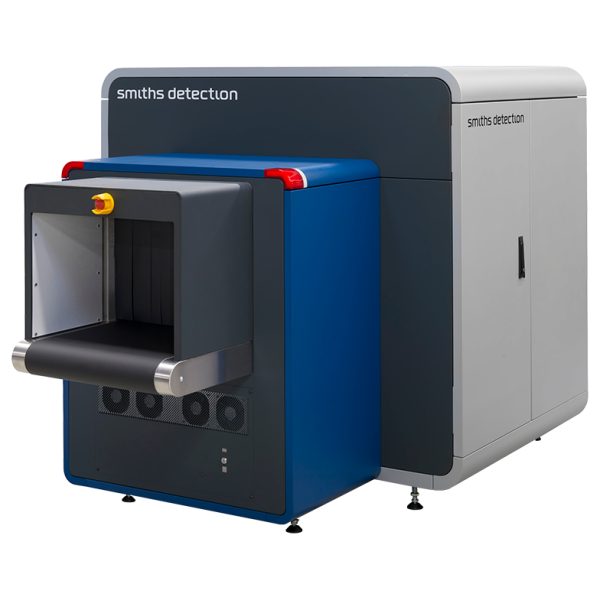

Smiths Detection HI SCAN 6040 CTIX
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
1
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
3300 x 1660 x 1624
Weight (kg)
2450
Electrical
Power
CT single phase 230 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz, 16 A; single phase 120 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz, 30 A
Software
Software / OS
Linux
Options
Options
iCMORE automated object recognition software
Features
Features (15)
  • Automatic explosives detection and object recognition
  • Fast 0.2m/s belt speed
  • Low energy consumption
  • Minimal noise/zero vibration
  • Highest certifications/approvals
  • ECAC approved for screening liquids
  • aerosols and gels (LAGs) up to 2 liters
  • D X-ray images
  • Red Dot award for fast and intuitive 3D image evaluation
  • Data security features including OS hardening
  • host-based firewall
  • strong encryption
  • System integrity monitoring
  • Easy integration into existing checkpoints
  • Noise levels under 60dB(A)
