Smiths Detection — HI SCAN 6046SI

Mail and Small Parcel · Model brochure & technical specifications

Back to X-Compare
Compare HI SCAN 6046SI against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Gilardoni ARGO 640 vs Hissco International HS6242 EVO2 vs Rapiscan 620XR HP
Open X-Compare

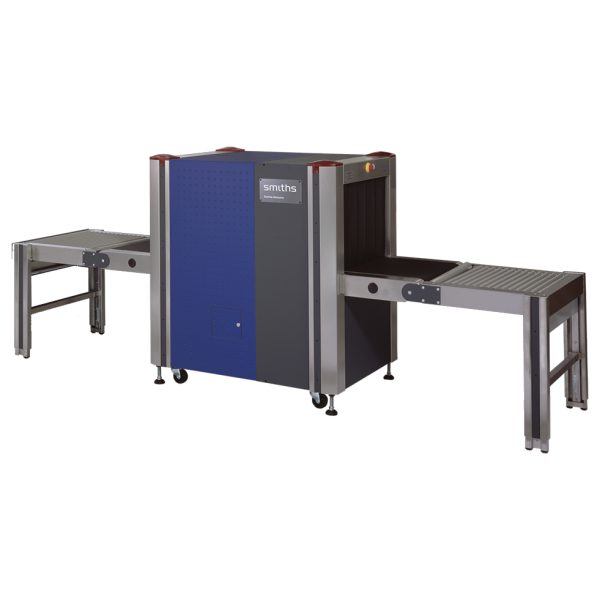

Smiths Detection HI SCAN 6046SI
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
460
Conveyor
Conveyor Height (mm)
694
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
2004 x 850 x 1290
Weight (kg)
400
Electrical
Power
230 VAC or 120 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
X-ACT, HI-TIP, Random ReCheck
Features
Features (12)
  • fading-in of date/time
  • luggage counter
  • user id-number
  • luggage marking system (acoustic)
  • display of operating mode
  • REVIEW-feature (to recall previously visible image areas)
  • zoom overview
  • free programmable keys
  • USB 2.0 interface
  • stepless zoom
  • IMS (Image Store System - stores up to 100
  • images)
