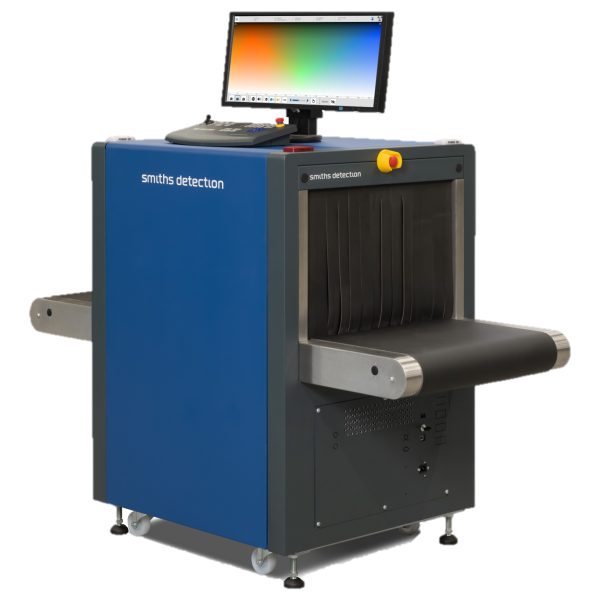

Smiths Detection SDX 6040
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.25
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
1.0
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
1730 x 797 x 1245
Weight (kg)
400
Electrical
Power
220 - 240 VAC -15%/+10% • 50 Hz / 60 Hz ±3Hz 110 - 120 VAC -15%/+10% • 50 Hz / 60 Hz ±3Hz
Software
Software / OS
Linux
Options
Options
Electronic zoom: stepless enlargement up to 256 times and scaling down up to 2 times; optimised background contrast mode; display of date and time; software counters for: objects, alarms, operating hours, ‘X-ray On’ hours and user ID-number; acoustic luggage marking system; display of operating mode; REVIEW feature of least 16 images; programmable priority keys; full reverse scanning; automatic return mode; Image Store System (IMS)
Features
Features (22)
  • Electronic zoom: stepless enlargement up to 256 times and scaling down up to 2 times
  • optimised background contrast mode
  • display of date and time
  • software counters for: objects
  • alarms
  • operating hours
  • X-ray On’ hours and user ID-number
  • acoustic luggage marking system
  • display of operating mode
  • REVIEW feature of least 16 images
  • programmable priority keys
  • full reverse scanning
  • automatic return mode
  • Image Store System (IMS)
  • USB 3.0 interface
  • network interface
  • two interlock switches
  • Digital Video Interface
  • mouse and HiTraX keyboard or 22-inch touchscreen monitor and HiTraX keyboard
  • Power-on self-test (POST)
  • Real-time background diagnosis (RBD)
  • Real-time system feedback (RSF)
