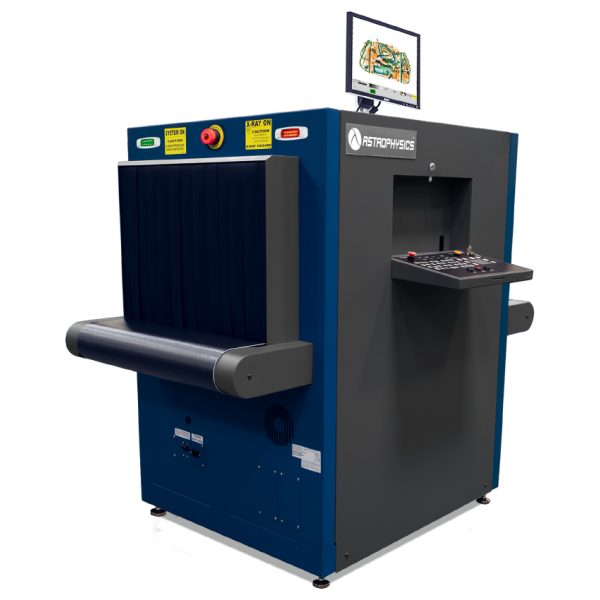

Astrophysics XIS 6545N
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
837
Tunnel Height (mm)
450
Conveyor
Conveyor Height (mm)
719
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.7
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
41 mm Typical, 39 mm Standard
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
1534 x 837 x 1305
Weight (kg)
431
Electrical
Power
110VAC +/- 10% 50/60Hz, 15 Amp Max; 220 VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Custom Paint, Environmental Kit, Entry/Exit Roller Tables, Footmat Operator Interlock, Internal/External UPS, Mobility Kit, Roller Bed, Radiation Meter, Remote Workstation Configuration, Sloped Conveyor, External USB Ports, Conveyor Capacity Load Increase, Variable Conveyor Speed
Features
Features (39)
  • Artificial Intelligence (AI)
  • Color Imaging
  • Enhanced Imaging™
  • Windows® Operating System with Intel® Core™ Processor
  • Narrow Frame
  • & 6 Color Imaging
  • Black & White Imaging
  • High Penetration Function
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Distortion Correction
  • Geometric Image
  • Material Discrimination
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Heavy Duty Casters
  • Image Annotation
  • JPEG Conversion
  • Print Image Capable
  • Multi-Tier Accessibility
  • Network Ready
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Barcode Scanning
  • Density Alert
  • Local Language
  • Safe Passage® Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
  • ? Flat Panel Monitor
