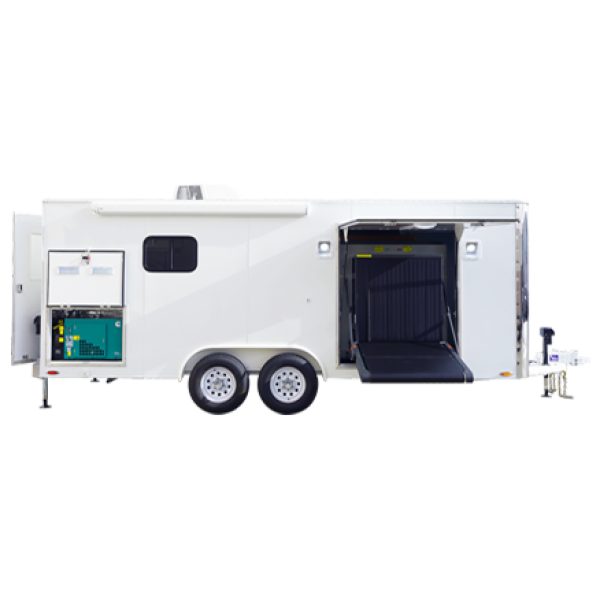

Astrophysics — XIS Trailer
Mobile · Model brochure & technical specifications
Compare XIS Trailer against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1016
Tunnel Height (mm)
1016
Conveyor
Conveyor Height (mm)
N/A
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
165
X-ray Current (mA)
1.0
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
6238 x 2286 x 3522
Weight (kg)
3900
Electrical
Power
110VAC +/- 10% 50/60Hz, 20 Amp Max; 220 VAC +/- 10% 50/60Hz, 15 Amp Max
Software
Software / OS
Windows® OS
Options
Options
N/A
Features
Features (40)
- Color Imaging
- Color and Black/White Imaging
- Distortion Correction
- Enhanced Imaging Mode
- Geometric Image
- High Penetration Function
- Hold to Preview Imaging Functions
- Inverse Color
- Organic/Inorganic Imaging
- Pseudo Color
- Real-Time Image Manipulation
- Reverse Monochrome
- Atomic Z-Number Measurement
- Material Discrimination
- Quadrant Zoom
- Continuous Scanning
- Continuous Zoom Up to 64x
- Vertical Zoom Panning
- Auto Image Archiving
- Image Review
- Save Image (RGB)
- Image Annotation
- JPEG Conversion
- Print Image Capable
- Multi-Tier Accessibility
- Network Ready
- Real-Time Self Diagnostics
- Baggage Counter
- Barcode Scanning
- Density Alert
- Local Language
- Safe Passage®
- Computer Based Training
- Screener Assist Software
- Threat Image Projection (TIP) Software
- Custom Paint
- Environmental Kit
- Intercom System
- Radiation Meter
- Test Case
