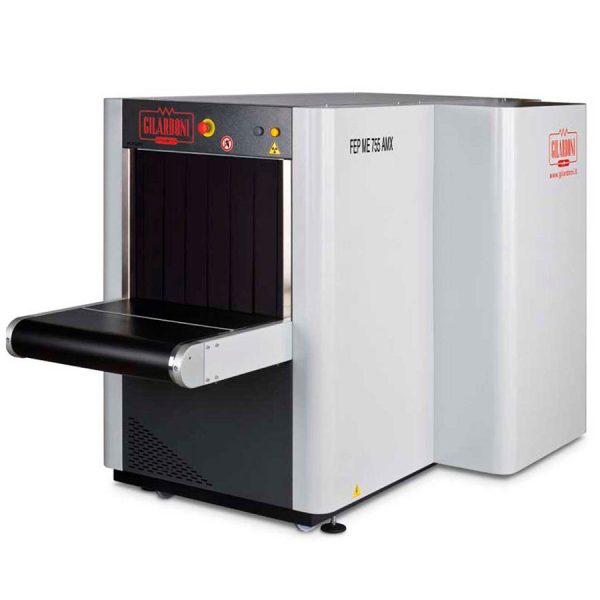

Gilardoni FEP ME 755 AMX
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
756
Tunnel Height (mm)
550
Conveyor
Conveyor Height (mm)
737
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.7
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
35
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2980 x 1360 x 1462
Weight (kg)
880
Electrical
Power
230VAC, 110Vac ± 10% 50/60Hz, ≤ 2kVA
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (4)
  • Beam orientation: diagonal upwards and lateral
  • Duty cycle: 100%
  • Leakage dose at 10cm: < 1.0µSv/h (0.1mR/h)
  • Film safety guaranteed up to ISO 1600/33 DIN
