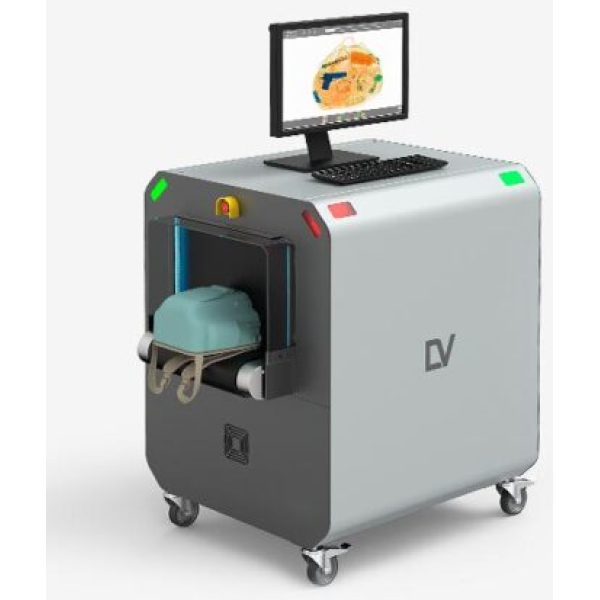

LINEV Systems BV 5030
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
520
Tunnel Height (mm)
320
Conveyor
Conveyor Height (mm)
713
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
1.0
Wire Resolution (mm)
40
Steel Penetration (mm)
37
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
1240 x 750 x 1200
Weight (kg)
360
Electrical
Power
230 VAC ± 10% / 120 VAC ± 5%, 50/60 Hz, Max 0.9 kVA
Software
Software / OS
Linux
Options
Options
Artificial Intelligence software system for automated detection of firearms, knives and ammunition, Touchscreen operation functionality, Ability to connect to a local network Remote operator position (up to 25 m), Monitor top position, Rigid type packaging
Features
Features (9)
  • Artificial Intelligence software system for automated detection of firearms
  • knives and ammunition
  • Automatic identification of suspicious objects (drugs
  • explosives)
  • Availability of 7
  • colour and infinite colour palettes of images
  • Fault-tolerant configuration of the acquisition/analysis workstation
  • Quick start-up and shutdown
  • Real-time self-diagnostics
