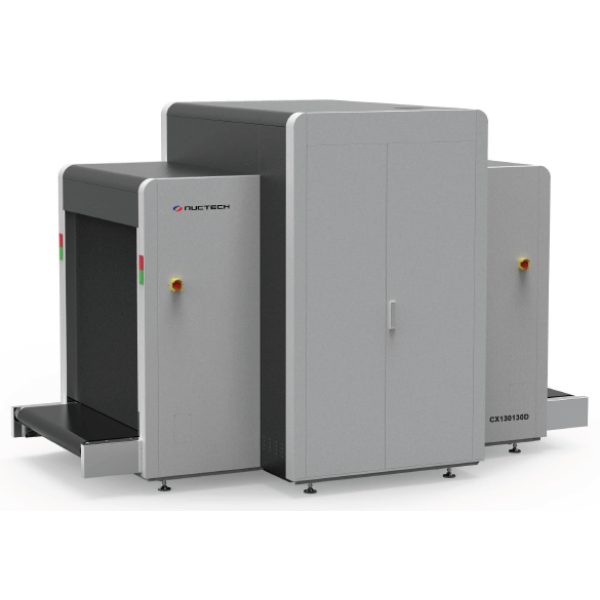

Nuctech CX130130D
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1310
Tunnel Height (mm)
1318
Conveyor
Conveyor Height (mm)
350
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
320
Generator
X-ray Voltage (kV)
170
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
50
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
3720 x 2095 x 2380
Weight (kg)
2490
Electrical
Power
100VAC ~ 240VAC (-15% ~ +10%), 50Hz/60Hz ±3Hz, 1.8kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (9)
  • High image quality with wire resolution of 38 AWG and steel penetration of 50mm
  • X-ray leakage around the equipment is close to natural background level
  • automatic detection and alarm of explosives and drugs
  • support stepwise
  • continuous zoom and magnifier functions
  • images can be saved as BMP
  • JPG and PNG
  • ergonomic keyboard and operator interface design
  • modular design and full built-in diagnostic facility
