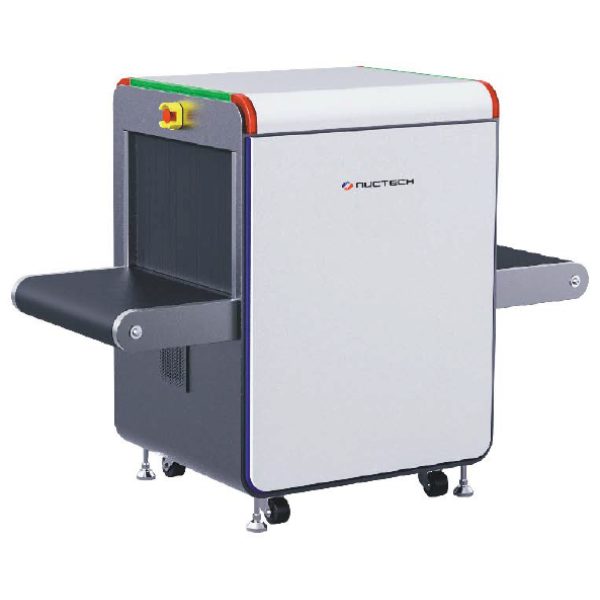

Nuctech — CX6040BC
Mail and Small Parcel · Model brochure & technical specifications
Compare CX6040BC against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
610
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
38
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
1660 x 800 x 1290
Weight (kg)
360
Electrical
Power
100VAC ~ 240VAC (-15% ~ +10%), 50Hz/60Hz ±3Hz, 0.8kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (11)
- World-leading image quality with high wire resolution of 40 AWG and steel penetration up to 38mm
- Explosives and narcotics detections and alarms according to the atomic number signatures
- Threat Image Projection (TIP) ready X-ray system
- Automatic detection of explosives & drugs
- Advanced material classification: orange for organic
- blue for metal and green for mixed material
- Ergonomic keyboard and user interface design
- High reliable operating and data storage safety
- Optimized concept of operations
- centralized image identify and storage capability
- Modular design and constructions with full built-in diagnostic facilities
