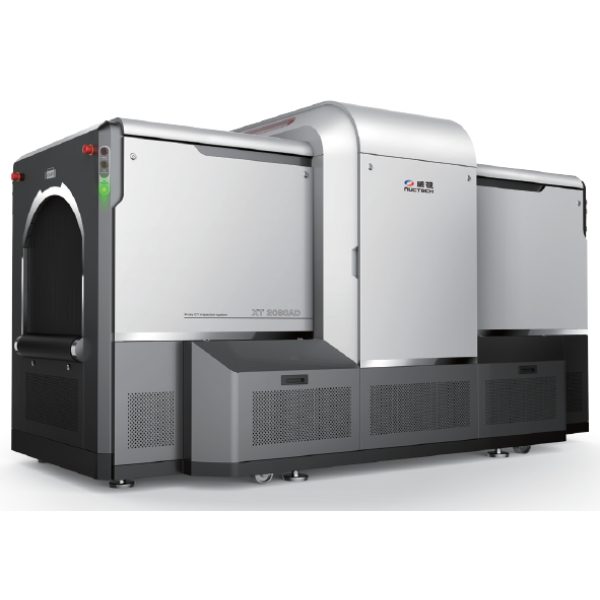

Nuctech — XT2080AD
Checkpoint · Model brochure & technical specifications
Compare XT2080AD against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
754
Tunnel Height (mm)
635
Conveyor
Conveyor Height (mm)
675
Conveyor Speed (m/s)
N/A
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
2
Wire Resolution (mm)
40
Steel Penetration (mm)
40
Generator
Cooling Type
Sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
3190 x 1640 x 1805
Weight (kg)
2700
Electrical
Power
Single phase, 220/110VAC(-10%～10%), 50Hz/60Hz±3Hz, Power Consumption 3.5kVA
Software
Software / OS
Windows
Options
Options
N/A
Features
Features (13)
- Dual-energy material discrimination technology
- spiral CT technology
- automated explosives/narcotics detection
- high-resolution 3D images
- distinct CT slice images
- independent dual-energy inspection system
- powerful network management
- innovative software functions including 3D measurement
- D mark
- D super penetration
- accurate and abundant color information
- practical 3D TIP function
- convenient maintenance design
