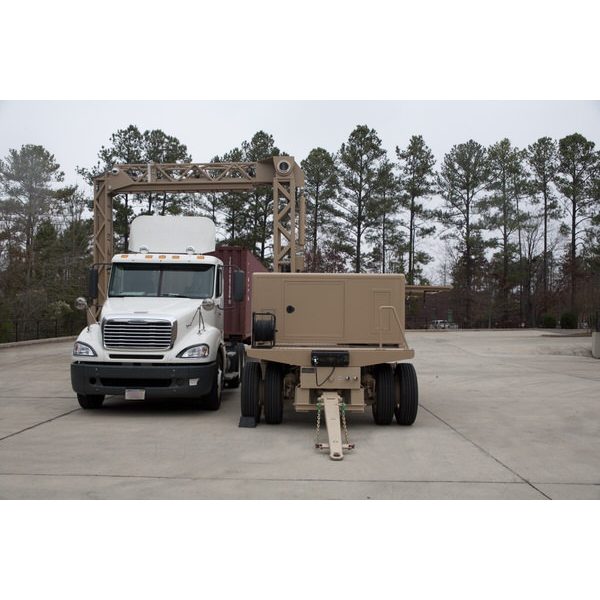

Rapiscan — EAGLE T25
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE T25 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
N/A
Recommended Max Vehicle/Object Size (mm)
2.8 x 9 x 2 x 4.6 x 15 x 1
Vehicle Throughput
Scanning Speed (km/hr)
3 x 8
Inspection Throughput (vehicles/hour)
60
Setup Time
30
Installation Time
N/A
Crew Requirement
One inspector
Vehicle Imaging
Linac / Nominal Energy (MeV)
2.5
Spatial Resolution
1
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
0.5
Operating Environment
Operating Temperature (C)
-10 x 40 x 14 x 104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
7.5 x 24 x 7 x 7.3 x 23 x 11 x 5.9 x 19 x 4
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
190
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 63 A, 44 kVA (option)
Options
Options
-30 x +50
Features
Features (11)
- Robust inspection system built on a rugged trailer platform
- High-throughput screening of up to 60 trucks per hour
- Deployed in minutes for fast response to changing operational requirements
- Material discrimination for efficient screening of cargo for threats and contraband
- Fully self-contained unit
- Portal mode operation with automatic cab exclusion or optional CabScan mode
- Vehicles scanned as they drive through the tunnel at 3–8 km/hr
- Built on a commercially available
- heavy-duty
- solid-frame trailer chassis with 2 rear axles
- Can be operated from 100 meters away with armored Ethernet cable or up to 300 meters away using armored fiber optic cable
