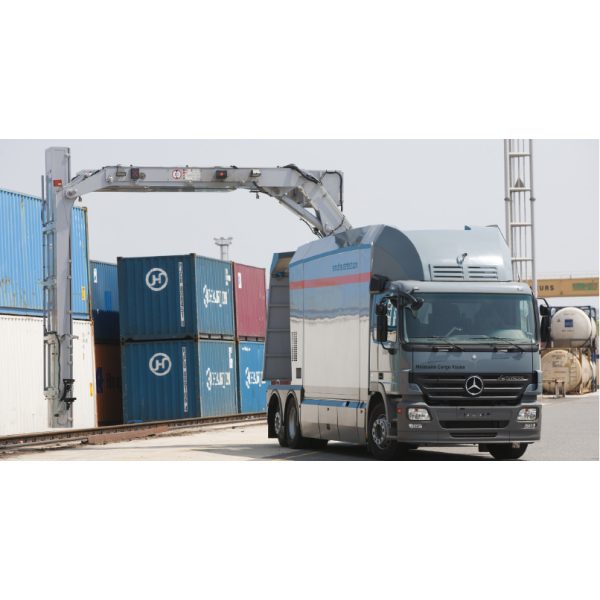

Smiths Detection — HCVM
Vehicle & Freight · Model brochure & technical specifications
Compare HCVM against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
475
Recommended Max Vehicle/Object Size (mm)
4.75 x 3.5 x 28
Vehicle Throughput
Scanning Speed (km/hr)
7
Inspection Throughput (vehicles/hour)
25
Setup Time
N/A
Installation Time
30
Crew Requirement
1
Vehicle Imaging
Linac / Nominal Energy (MeV)
4 - 6
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
0.5 - 1
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
0.5 - 1
Operating Environment
Operating Temperature (C)
-20°C to +43°C
Relative Humidity
Up to 100%
Mechanical
Footprint (L×W×H) (mm)
11000 x 8600 x 5600
Weight (kg)
26000
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
1
Performance
Steel Penetration (mm)
N/A
Software
Software / OS
Linux
Electrical
Power
24 kVA in average
Options
Options
N/A
Features
Features (6)
- High throughput up to 25 trucks per hour in scan mode and up to 150 trucks per hour in pass through mode
- Steel Penetration up to 320mm (12.6”) @ 6MeV
- Advanced technology with organic/inorganic material discrimination and colorization
- Modular design for mobility and ease of operation
- Cabin accommodates up to 4 operators
- Automatic radioactive material detection (optional)
