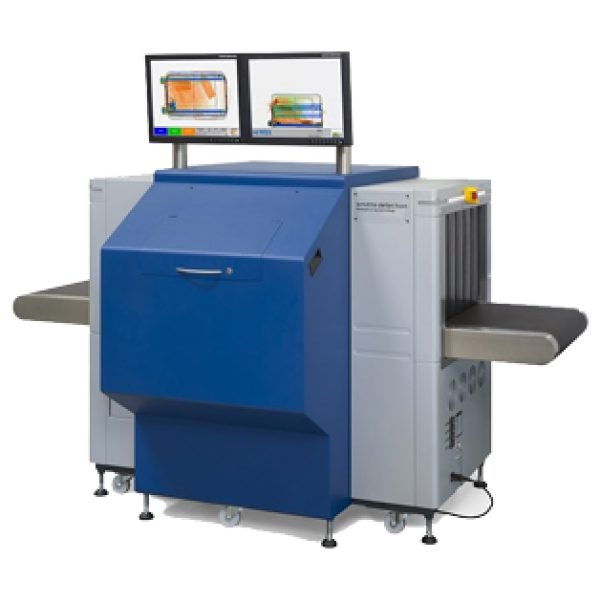

Smiths Detection HI SCAN 6040 2IS
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
800
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
2340 x 1314 x 1372
Weight (kg)
820
Electrical
Power
standard: 100, 120, 200, 230, 240 VAC +10% / -20% • 50 Hz - 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
HI-TIP, Random ReCheck, iCMORE Weapons (HR version only)
Features
Features (18)
  • Compact footprint and weighs less than 850 kg
  • Steel penetration of 35 mm
  • Flexible design for easier installation through door widths of 900 mm
  • Dual-view technology
  • Operator friendly interface
  • Available in standard and high resolution
  • fading-in of date/time
  • luggage counter
  • user id-number
  • luggage marking system (acoustic)
  • display of operating mode
  • REVIEW-feature
  • zoom overview
  • free programmable keys
  • USB 2.0 interface
  • stepless zoom
  • IMS (Image Store System - stores up to 100
  • images)
