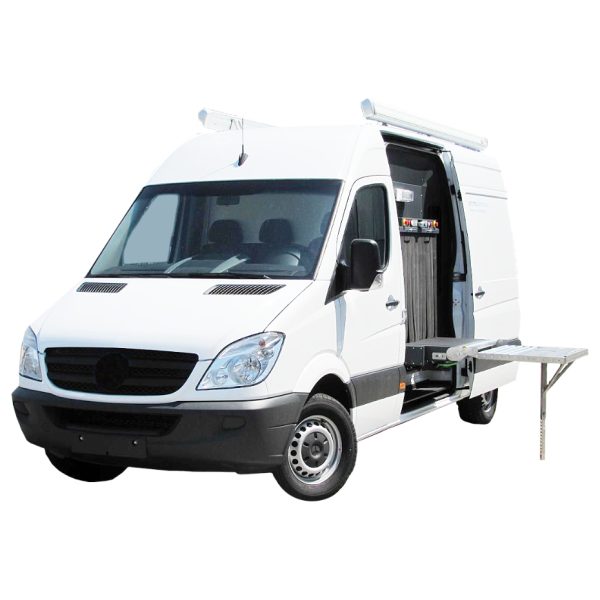

Smiths Detection — SCANVAN 8585
Mobile · Model brochure & technical specifications
Compare SCANVAN 8585 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
853
Tunnel Height (mm)
856
Conveyor
Conveyor Height (mm)
300
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
31
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
N/A
Weight (kg)
N/A
Electrical
Power
External power supply 220 - 240 VAC +10% / -15%, 50 or 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
Power generator driven by the vehicle engine, Power generator with own diesel engine, Stronger air conditioner, Sun-Blind, Monitor options, Rear view system, Intercom system, Video monitoring system, Printer, Console with shelf, Floor heating for operators cabin, Auxiliary heating for operators cabin, Outside lighting, Further options on request
Features
Features (15)
- Mobile
- flexible system
- Insulated body
- Powerful X-ray generator (160 kV cp)
- Penetration up to 31 mm steel (typical)
- Film safe up to ISO 1600 / 33 DIN
- Integrated power generator (option)
- Air-conditioner
- Rapid heater
- Motorized conveyor at input side
- Heavy duty roller conveyor at output
- Equipped operator space with control desk
- operator chair
- monitor
- keyboard
