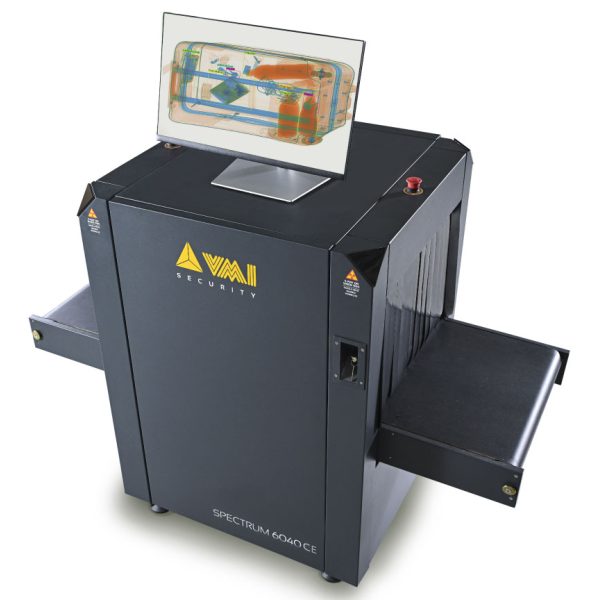

VMI Security — 6040CE
Mail and Small Parcel · Model brochure & technical specifications
Compare 6040CE against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
606
Tunnel Height (mm)
416
Conveyor
Conveyor Height (mm)
650
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
170
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
38
Generator
Cooling Type
Insulating oil with forced air cooling
Mechanical
Footprint (L×W×H) (mm)
1632 x 800 x 1200
Weight (kg)
445
Electrical
Power
110 - 127 VAC / 208 - 240 VAC (-15% to +10%); 50 Hz/60 Hz, +/-3 Hz, Power 740 VA
Software
Software / OS
Linux
Options
Options
Customized painting; Training software; Local language; Remote workstation; ASTM standard test kit; Modular roller table; Lockable anti theft console with key; Remote management software for multiple devices; Camera; Tunnel protection extension; UPS; Ability to integrate with conveyor system; WiFi capability; Integration with Garrett’s walk-through metal detector portals; ONVIF compatibility
Features
Features (5)
- Internal UPS for safety shutdown
- Bidirectional Scanning
- ? Evenly distributed
- X-Ray alarm Detector
- Line X-Ray indicator LED L-Shaped
